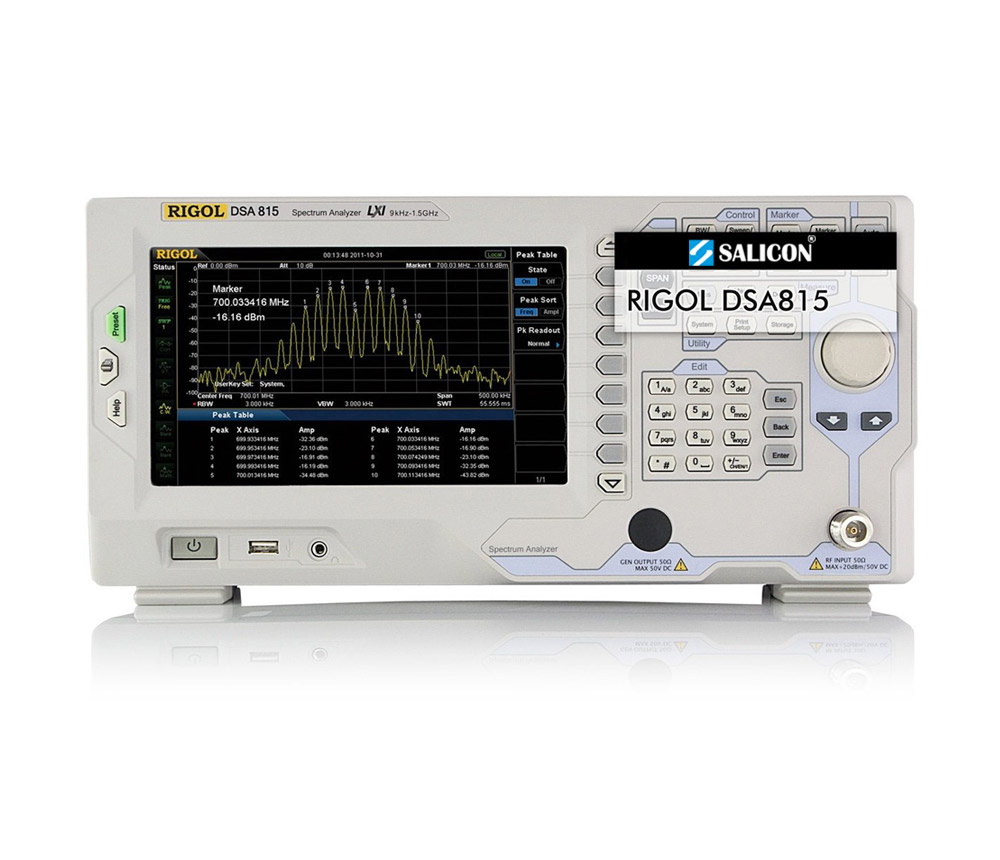

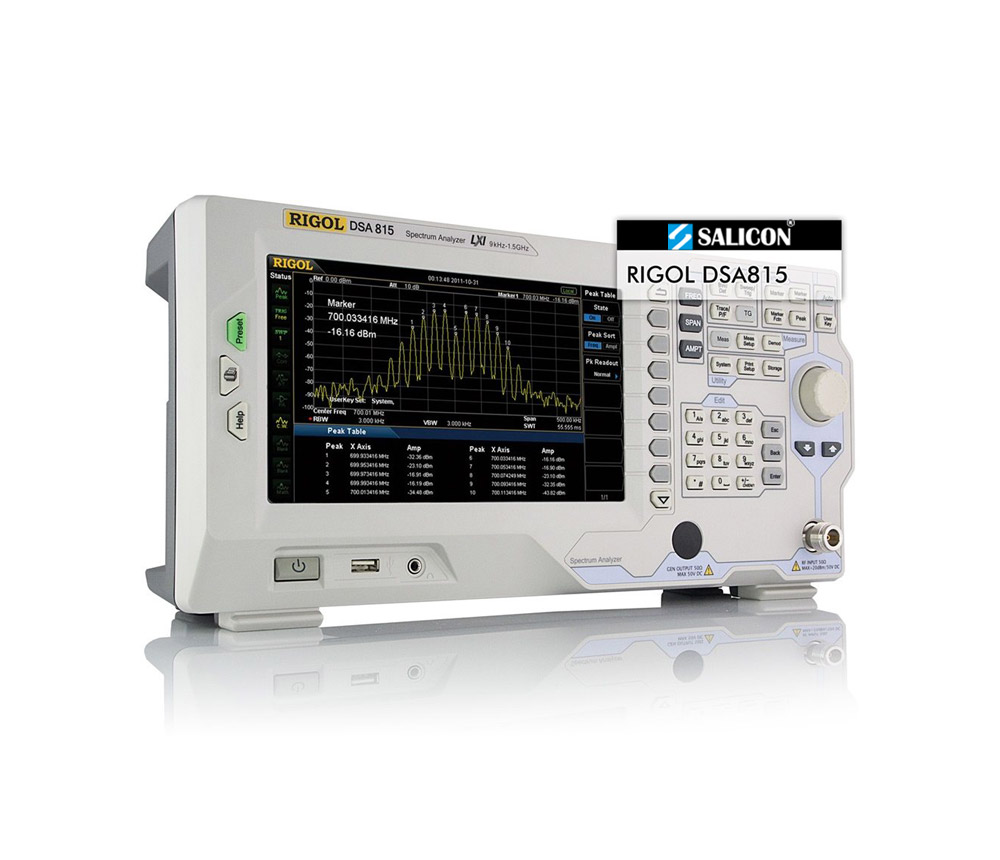

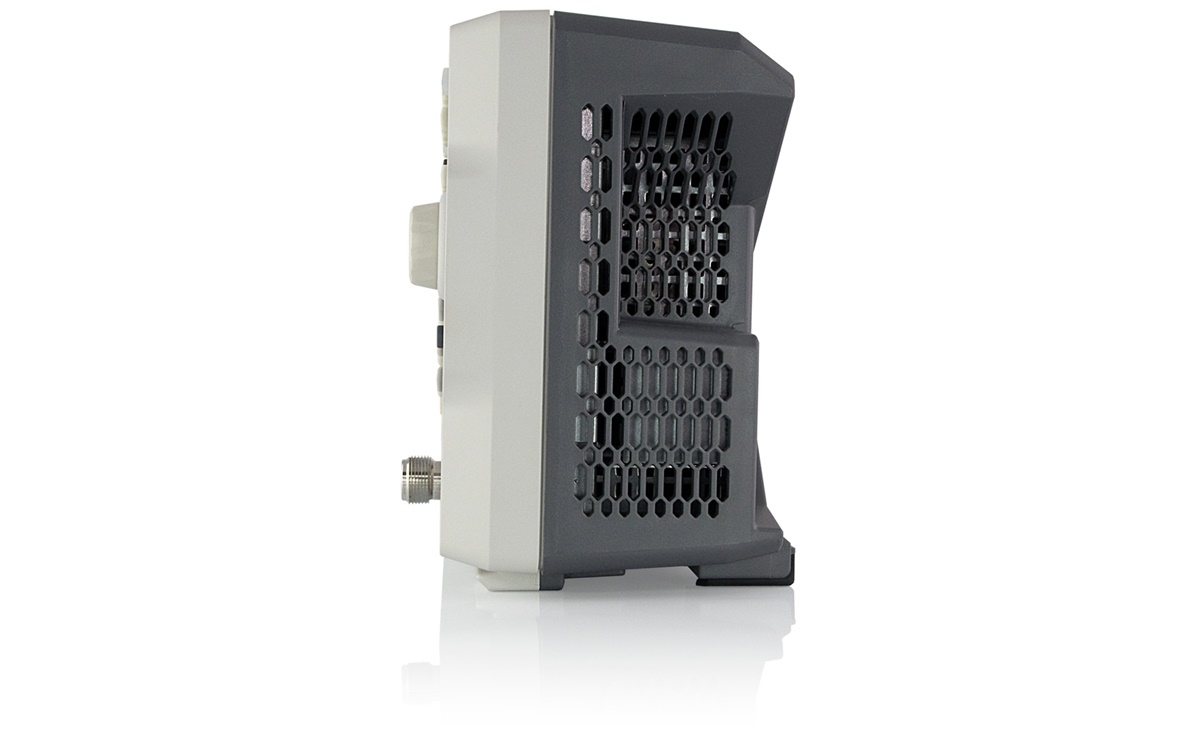

The Rigol DSA815 is a compact and light weight Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications.
The very large display (20.3 cm / 8″) of the Rigol DSA815 Spectrum Analyzer provides a resolution of 800×480 pixels allowing a very good overview of all its comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions enable the analyzer to acquire signals and match parameters automatically, compared to the manual process necessary with a traditional analyzer.
The Rigol Spectrum Analyzers have a sophisticated and easy to use user interface offering multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.
Model-Overview
Max. Bandwidth
EMI/QuasiPeak
Adv. Meas. Kit
Preamplifier
Tracking Gen.
DSA815
1.5 GHz
optional
optional
Stanadard
X
DSA815-TG
1.5 GHz
optional
optional
Stanadard
Stanadard
DSA832E
3.2 GHz
optional
optional
Stanadard
X
DSA832E-TG
3.2 GHz
optional
optional
Stanadard
Stanadard
DSA832
3.2 GHz
optional
optional
Stanadard
X
DSA832-TG
3.2 GHz
optional
optional
Stanadard
Stanadard
DSA875
7.5 GHz
optional
optional
Stanadard
X
DSA875-TG
7.5 GHz
optional
optional
Stanadard
Stanadard
Special Features
Spectrum compare
10 Hz RBW
AM Signal Demodulation
Peak table function
EMI Measurement (option)
Preamplifier
Specifications
Spectrum Analyzer
Spectrum Analyzer Rigol DSA815
Display
20.3 cm (8″) TFT-Color-LCD
Resolution
800 × 480 Pixel

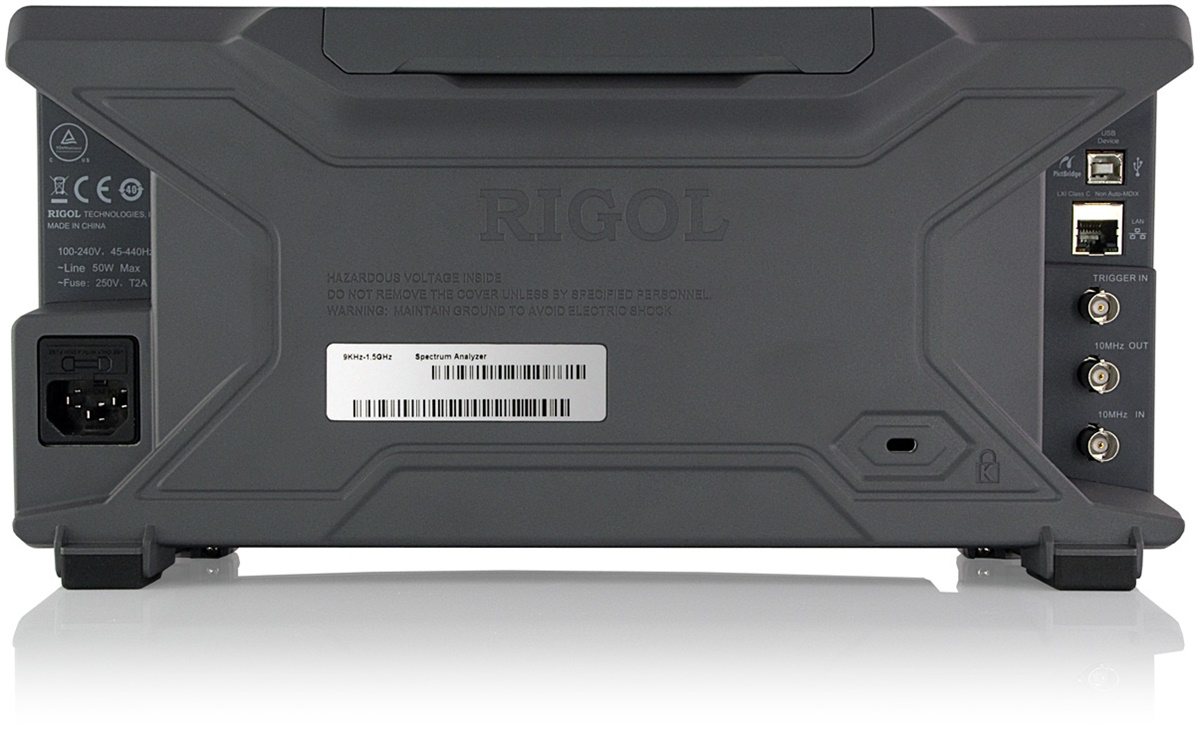

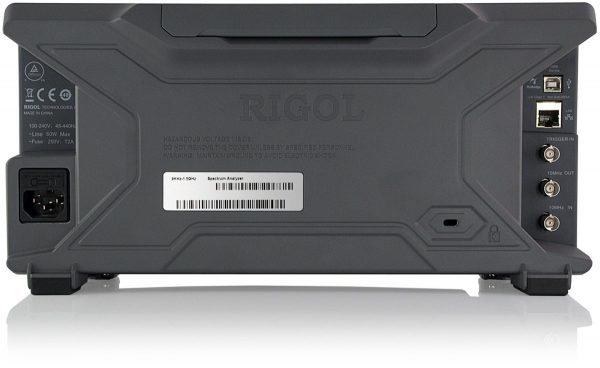

Interfaces
USB-Host (for USB stick i.e. to save/load waveforms)
USB for a PC connection
LAN for network connection
GPIB (IEE-488, General Purpose Interface Bus) The GPIB function is only available with the use of the optional available USB GPIB module
Dimensions
362 mm × 179 mm × 128 mm
Weight
4.55 kg (10.03 lbs)
Supported operation systems
Windows XP, Vista, Windows 7, Windows 8, Windows 10
The complete list of technical specifications can be found in chapter 6 “Specifications” of the manual. A shorter overview is available in the datasheet.
Function
Spectrum Analyzer Rigol DSA815
Channels
1
Frequency Range
9 kHz to 1.5 GHz
Frequency Resolution
1 Hz
Internal Frequency Reference
10 MHz
Span
0 Hz (zero Span)
100 Hz to 1.5 GHz
DANL
(Displayed Average Noise level)
(Normalized to 1 Hz)
