Description
The Rigol DSA875-TG is a compact and light weight Spectrum Analyzer with Tracking Generator & premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications. The very large display (20.3 cm / 8″) of the Rigol DSA875-TG Spectrum Analyzer provides a resolution of 800×480 pixels allowing a very good overview of all its comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions enable the analyzer to acquire signals and match parameters automatically, compared to the manual process necessary with a traditional analyzer. The Rigol Spectrum Analyzers have a sophisticated and easy to use user interface offering multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.
| Model-Overview |
Max. Bandwidth |
EMI/QuasiPeak |
Adv. Meas. Kit |
Preamplifier |
Tracking Gen. |
| DSA815 |
1.5 GHz |
optional |
optional |
Stanadard |
X |

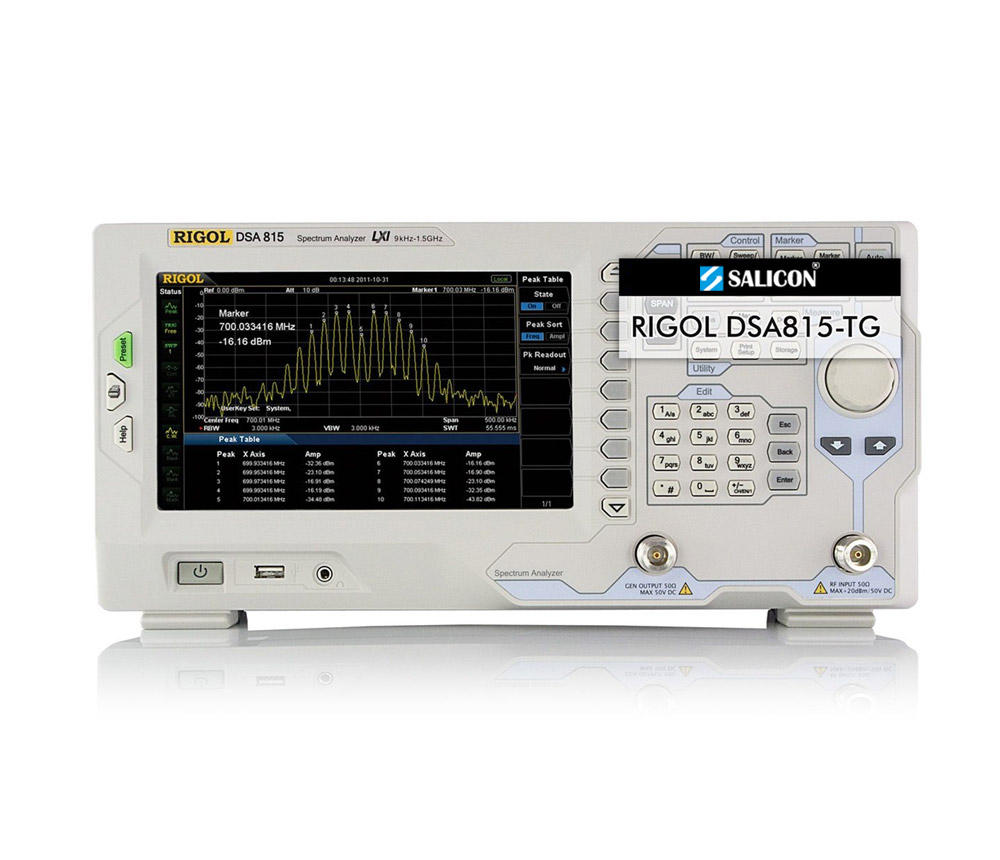

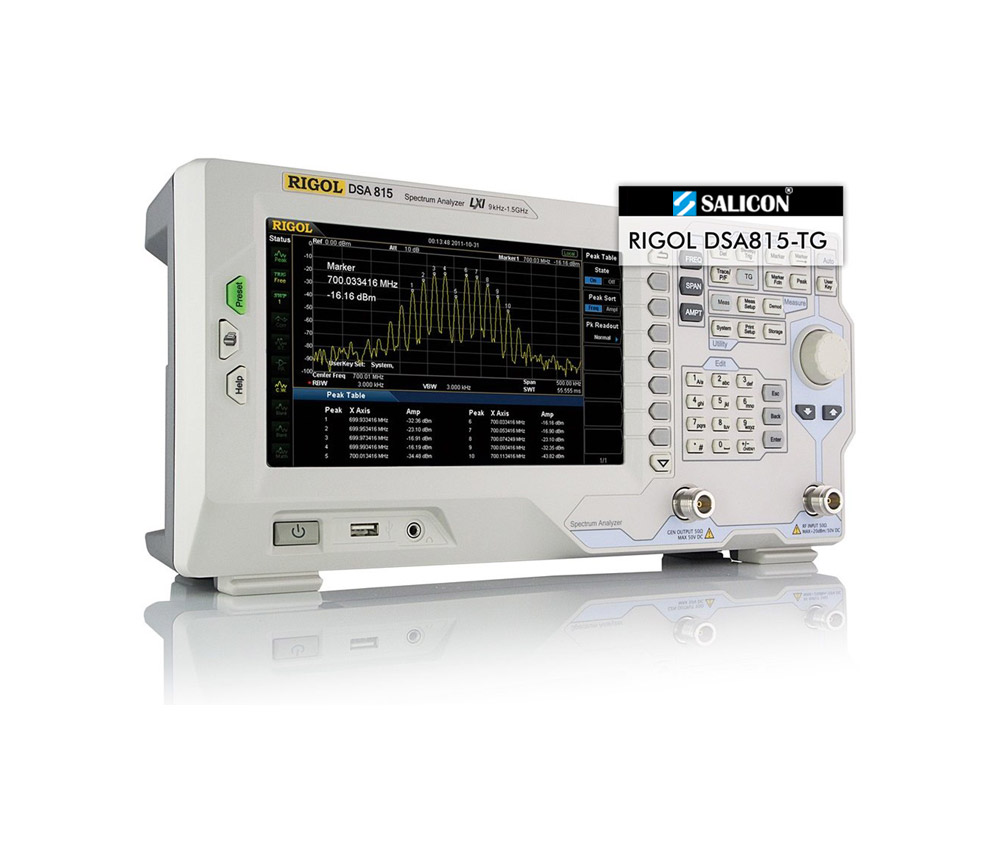

| DSA815-TG |
1.5 GHz |
optional |
optional |
Stanadard |
Stanadard |
| DSA832E |
3.2 GHz |
optional |
optional |
Stanadard |
X |
| DSA832E-TG |
3.2 GHz |
optional |
optional |
Stanadard |
Stanadard |
| DSA832 |
3.2 GHz |
optional |
optional |
Stanadard |
X |
| DSA832-TG |
3.2 GHz |
optional |
optional |
Stanadard |
Stanadard |
| DSA875 |
7.5 GHz |
optional |
optional |
Stanadard |
X |
| DSA875-TG |
7.5 GHz |
optional |
optional |
Stanadard |
Stanadard |
Specifications
| Spektrum Analyzer |
Rigol DSA875 |
| Display |
20,3 cm (8″) TFT-Color-LCD |
| Resolution |
800 × 480 Pixel |

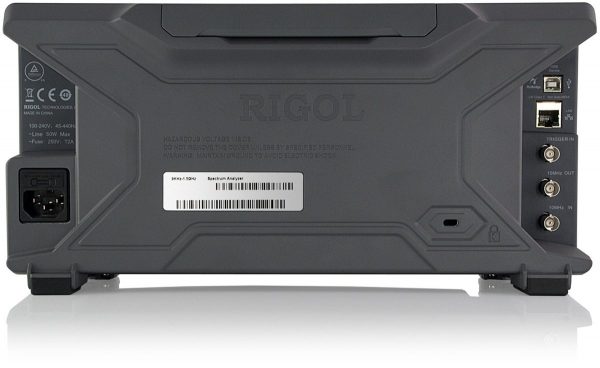

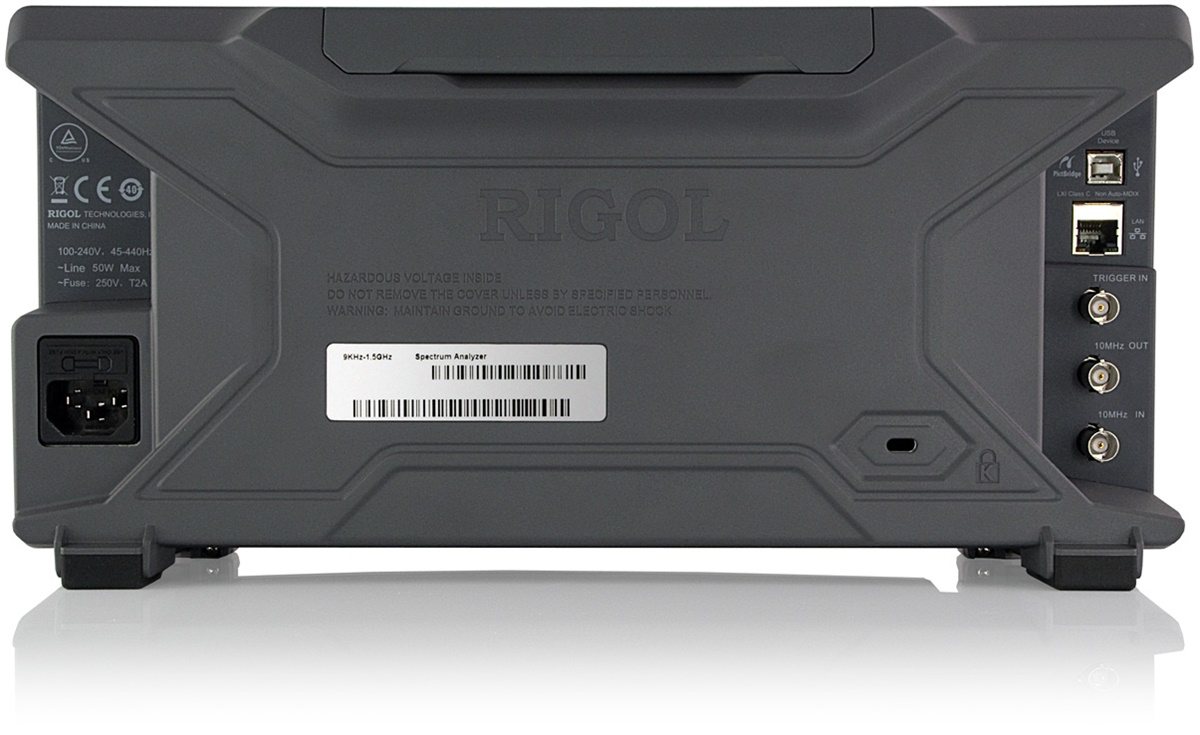

| Interfaces |
- USB-Host (for USB stick i.e. to save/load waveforms)
- USB for a PC connection
- LAN for network connection
- GPIB (IEE-488, General Purpose Interface Bus) The GPIB function is only available with the use of the optional available USB GPIB module
|
| Dimensions |
362 mm × 179 mm × 128 mm (15.71″ × 8.78″ × 6.26″) |
| Weight |
4.55 kg (10.03 lbs) |
The complete list of technical specifications can be found in chapter 5 “Specifications” of the manual. A shorter overview is available in the datasheet.
| Function |
Rigol DSA875 |
|
| Channels |
1 |
|
| Frequency Range |
9 kHz to 7.5 GHz |
|
| Frequency Resolution |
1 Hz |
|
| Internal Frequency Reference |
10 MHz |
|
| Span |
0 Hz (zero Span)
100 Hz to 7.5 GHz |
|
| DANL
(Displayed Average Noise level) |
9 kHz to 100 kHz
100 KHz to 5 MHz
5 MHz to 3.2 GHz
3.2 GHz to 6 GHz
6 GHz to 7.5 GHz |
<-120 dBm (typ.)
<-135 dBm, <-138 dBm (typ.)
<-140 dBm, <-144 dBm (typ.)
<-136 dBm, <-140 dBm (typ.)
<-131 dBm, <-135 dBm (typ.) |
| DANL (with Preamplifier)
(Displayed Average Noise level) |
100 kHz to 1 MHz
1 MHz to 5 MHz
5 MHz to 3.2 GHz
3.2 GHz to 6 GHz
6 GHz to 7.5 GHz |
<-152 dBm (typ.)
<-152 dBm, <-155 dBm (typ.)
<-157 dBm, <-161 dBm (typ.)
<-153 dBm, <-157 dBm (typ.)
<-148 dBm, <-152 dBm (typ.) |
| Amplitude Range |
DANL to +20dBm |
|
| Max. Input Voltage |
50 V |
|
| Sweeptime Range |
Span >= 100 Hz
zero span |
10 ms to 7500 s
20 µs to 7500 s |
| Resolution Bandwidth (RBW) |
10 Hz to 1 MHz (in 1-3-10 sequence) |
|
| Video Bandwidth (VBW) |
1 Hz to 3 MHz (in 1-3-10 sequence) |
|
| Input Impedance |
50 Ohm nominal |
