Description
High Z passive probe
| Specification | 1 : 1 | 10 : 1 |
|---|---|---|
| Input impedance | 1 MΩ 2% | 10 MΩ 2% |
| Bandwidth | 7 MHz | 150 MHz |
| Rise time | 50 ns | 2,3 ns |
| Compensation Range | 5 pF – 29 pF | 5 pF – 29 pF |
| Max. Input | CAT II 150 V | CAT II 300 V |
| Cable length | 1,4 m | 1,4 m |

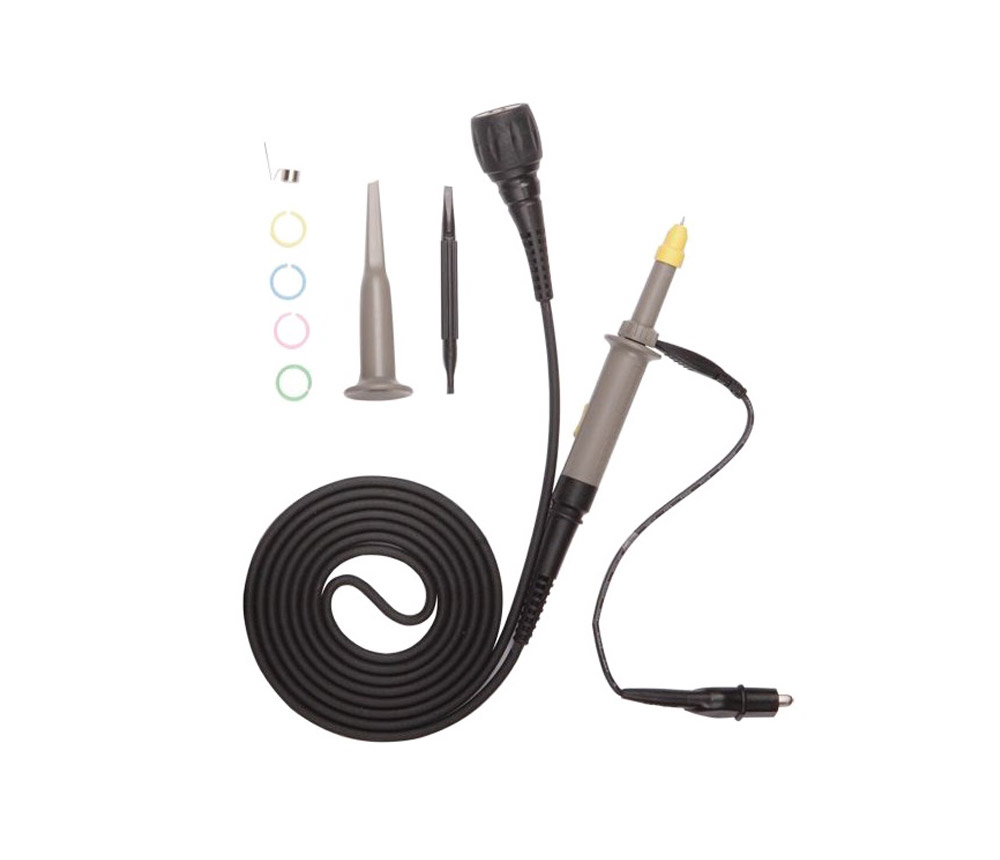

Rigol PVP2150 (10:1/1:1)
Downloads
Datasheet
PVP2150 Data sheet
Language: English
File Size: 320.86 KiB
Release Date: 20.09.2019
