Name: Rigol RP1050D High Voltage Differential Probe, DC-50 Mhz, 7000 Vpp
SKU: RP1050D
Price: 80712.00 INR
Availability: InStock

Description

RP1000D series high voltage differential probe can convert high differential input voltage to low voltage and display the waveform on oscilloscope. Its working frequency is up to 50MHz (RP1050D) and it is rather suitable for large electricity test and R&D.

RP1000D series high voltage differential probe is applicable to general purpose oscilloscope and its output label is the relative attenuation when the input impedance of the oscilloscope is 1MΩ. The relative attenuation will double when the input impedance of the oscilloscope is 50Ω.

RP1025D High Voltage Differential Probe

Manufacturer Specs

Model	RP1025D	RP1050D	RP1100D
Bandwidth	X50 or X200 attenuation ratio: DC – 25MHz (-3dB) X20 attenuation ratio: DC – 15MHz	X200, X500 or X1000 attenuation ratio: DC – 50MHz (-3dB) X100 attenuation ratio: DC – 25MHz	X200, X500 or X1000 attenuation ratio: DC – 100MHz (-3dB) X100 attenuation ratio: DC – 25MHz
Attenuation Ratio	X20, X50, X200	X100, X200, X500, X1000	X100, X200, X500, X1000
Accuracy	±2%	±2%	±2%
Input Voltage Range (DC + AC peak-peak value)	X20 attenuation ratio: ≤ 140Vpp, (about 45Vrms or DC) X50 attenuation ratio: ≤ 350Vpp, (about 110Vrms or DC) X200 attenuation ratio: ≤ 1400Vpp, (about 450Vrms or DC)	X100 attenuation ratio: ≤ 700Vpp, (about 230Vrms or DC) X200 attenuation ratio: ≤ 1400Vpp, (about 460Vrms or DC) X500 attenuation ratio: ≤ 3500Vpp, (about 1140Vrms or DC) X1000 attenuation ratio: ≤ 7000Vpp, (2300Vrms or DC)	X100 attenuation ratio: ≤ 700Vpp, (about 230Vrms or DC) X200 attenuation ratio: ≤ 1400Vpp, (about 460Vrms or DC) X500 attenuation ratio: ≤ 3500Vpp, (about 1140Vrms or DC) X1000 attenuation ratio: ≤ 7000Vpp, (about 2300Vrms or DC)
Maximum Input Voltage	Maximum differential voltage: 1400V (DC+AC peak-peak value) or 450Vrms Voltage to ground at the input terminal: 600Vrms	Maximum differential voltage: 7000V (DC+AC peak-peak vale) or 450Vrms Voltage to ground at the input terminal: 6500Vrms	Maximum differential voltage: 7000V (DC+AC peak-peak value) or 450Vrms Voltage to ground at the input terminal: 6500Vrms
Input Impedance	Differential: 4MΩ/1.2pF Single-ended and to ground: 2MΩ/2.3pF	Differential: 100MΩ/1.2pF Single-ended and to ground: 50MO/2.3pF	Differential: 100MΩ/1.2pF Single-ended and to ground: 50MΩ/2.3pF
Output Voltage	≤ ±7.0V	≤ ±7.0V	≤ ±7.0V
Output Impedance	50Ω	50Ω	50Ω
Rise Time	X50 or X200 attenuation ratio: 14ns X20 attenuation ratio: 23.4ns	X200, X500 or X1000 attenuation ratio: 7ns X100 attenuation ratio: 14ns	X200, X500 or X1000 attenuation ratio: 3.5ns X100 attenuation ratio: 7ns
Common-mode Rejection	60Hz: > 80dB 100Hz: > 60dB 1MHz: > 50dB	60Hz: > 80dB 100Hz: > 60dB 1MHz: > 50dB	60Hz: > 80dB 100Hz: > 60dB 1MHz: > 50dB
Power Supply	Specified external 9V DC power supply (must be specified products acknowledged by our company)	Specified external 9V DC power supply (must be specified products acknowledged by our company)	Specified external 9V DC power supply (must be specified products acknowledged by our company)
Power Consumption	0.4 watt	0.4 watt	0.4 watt

Operation Environment
	General	Operation	Storage
Temperature	+20° to +30°	0° to +50°	-30° to +70°
Humidity	≤ 70%RH	10% to 85%RH	10% to 90%RH
General Specifications
Probe Dimensions	RP1025D: about 214mm x 60mm x 35mm RP1050D: about 240mm x 85mm x 36mm RP1100D: about 240mm x 85mm x 36mm
Weight	RP1025D: 280g RP1050D: 280g RP1100D: 280g
Safety	IEC 1010-1, CAT III, pollution degree 2
Electromagnetic Compatibility	Conform to EN50081-1 and 50082-1 standards
Maximum Voltage to Ground	RP1025D: 600Vrms RP1050D: 6500Vrms RP1100D: 6500Vrms
Using Environment	Indoor environment
Insulation Category	Double insulation

Tech Specs

Accessories/Probes/Oscilloscope Probes/Active Differential Oscilloscope Probes Template
Current Type (Scope probes)	DC
Test Equipment General Attributes
Product Weight	280 GRAMS
Product Height	214 MM (8.43 IN)
Product Length	60 MM (2.36 IN)
Product Width	35 MM (1.38 IN)
HS Code Number	9030
ECCN Number	3A992.a
Country of Origin	China
Shipping Height	5.00 IN
Shipping Length	19.00 IN
Shipping Width	13.00 IN

Reviews

There are no reviews yet.

Be the first to review “Rigol RP1050D High Voltage Differential Probe, DC-50 Mhz, 7000 Vpp”

Specifications	100 : 1
Input Impedance	100 MΩ, 4 pF
Bandwidth	300 MHz
Rise Time	1.2 ns
Compensation Range	10..50 pF
Max. Input Voltage	4000Vp CAT I, DC incl. Peak AC
Cable Length	1,2 m

Specifications	100 : 1
Input Impedance	100 MΩ, 4 pF
Bandwidth	300 MHz
Rise Time	1.2 ns
Compensation Range	10..50 pF
Max. Input Voltage	2500Vp CAT I, DC incl. Peak AC
Cable Length	1,2 m

Register

Already have an account? Login

Rigol RP1050D High Voltage Differential Probe, DC-50 Mhz, 7000 Vpp

Description

Manufacturer Specs

Tech Specs

Accessories/Probes/Oscilloscope Probes/Active Differential Oscilloscope Probes Template

Test Equipment General Attributes

Downloads

Reviews

Rigol RP1050D High Voltage Differential Probe, DC-50 Mhz, 7000 Vpp

Description

Manufacturer Specs

Tech Specs

Accessories/Probes/Oscilloscope Probes/Active Differential Oscilloscope Probes Template

Test Equipment General Attributes

Downloads

Reviews

Related products

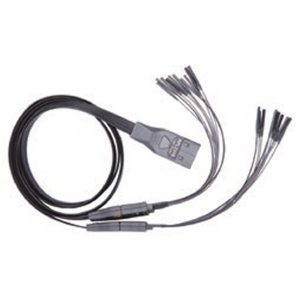

Rigol PLA2216 Active logic probe
