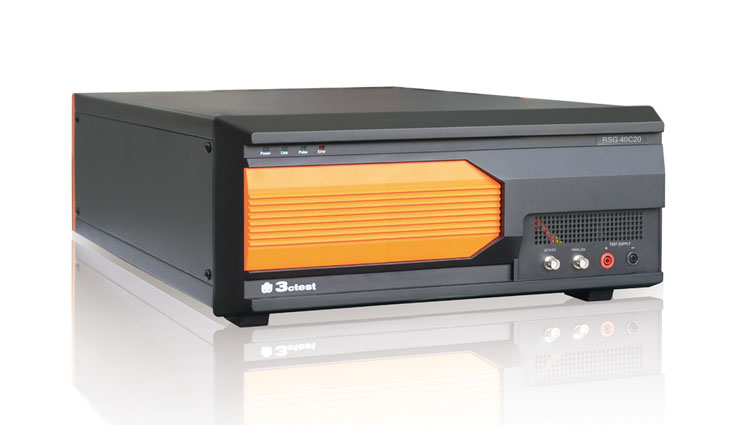

Ripple Signal Generator RSG series

Description

The RSG series ripple signal generator is according with ISO/TS 7637-4-2020, ISO 21498-2-2021 and VW 80300_EN_2021 standards, meeting the requirements of standard pulse B for transient conduction measurement of new energy vehicle-mounted electric drive and high-voltage parts. It adopts the third generation control platform design of our company and features intelligent control and convenience to use. Users can run tests through Autolab software by setting all parameters on it.

Features：

• 5.7-inch touch screen;
•  As per ISO/TS 7637-4-2020 pulse B requirements;
•  The integrated design makes the system more simple, safe and durable;
•  Ethernet, RJ45 interface for PC remote control and test report print;
•  The key components are all made of high-quality imported materials, with reliable quality, exquisite appearance and comfortable operation.

Test Connection Diagram:

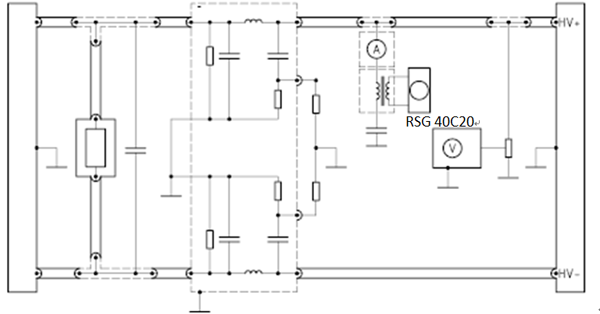

1 line-to-line

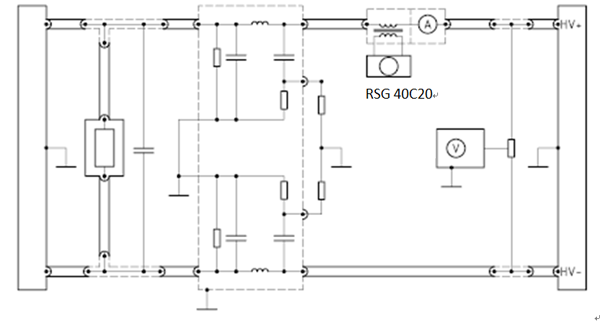

2 HV+ line-to-ground
