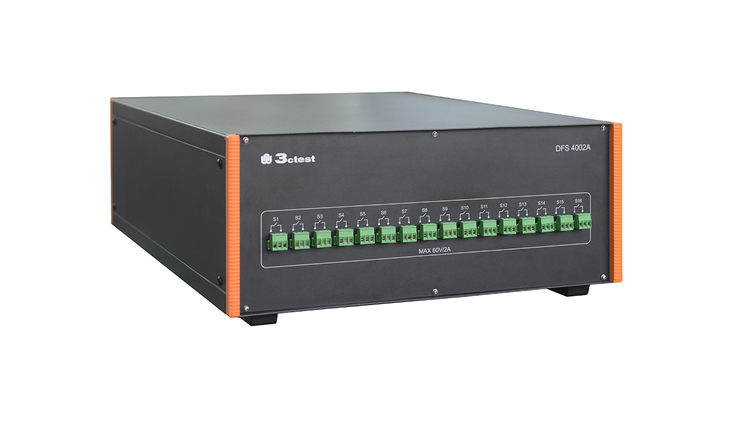

DFS 4002A meets the test requirements of LV 124 (E10, E13, E14) and LV 148 (E48-09) of German automobile manufacturers. It is equipped with 16-channel switch, with rated current of 100 uA – 2A for each channel.

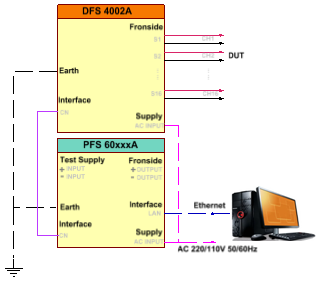

Equipment Connection Diagram:
| Technical Parameters | |
|---|---|
| Channels | 16 independent channels, switchable, programmable to have any channels; |
| EUT Voltage | Max ±60 V DC |
| EUT Current | 100 µA – 2 A (each channel, at 25 °C) |
| Polarity | +/- |
| Repetition Rate | 0.001s – 99.9s (or as customized) |
| T rise, T fall | < 1 µs ( @ 1 kΩ;@ 1 Ω (V = 2 V)) |
| Switch Impedance | < 500 Ohm |
| Interruption Time | 1 µs (10% +/-1us) – (or as customized) |
| Synchronization | Can be operated with PFS 60xxA (Power Failure Simulator), Synchronization error: <1 µs |
| Peak Current | < 5 A |
| General Parameters | |
| Main Control | Same as PFS 60xxA |
| Display | 5.7” TFT touch screen |
| Power Supply Range | AC 110V/220V±10%，50/60Hz±5% |
| Max Power | 200 W |
| Dimension | 19”/ 4 U |
| Weight | About 18Kg |
| Temperature | 15-35℃ |
| Humidity | 45% – 75% |
| Air Pressure | 86kPa – 106kPa |
Model：PFSxxA series
PFS A series Automotive Power Failure Simulator is standalone test equipment with electronic switch inside, it can simulate voltage dip and drop (micro interruption) and ensure the voltage fast rising or falling time to be within 1?s.
Model：PFSxxA series
PFS A series Automotive Power Failure Simulator is standal
...
Model：APSxxD series
Four quadrant battery supply simulator and DC voltage source APS series can be used as battery supply simulation and DC voltage source. During test in test lab.
Model：APSxxD series
Four quadrant battery supply simulator and DC voltage sour
...
Model：APGxx series
Voltage drop simulator – battery supply simulator and DC voltage source APGxx series can be used as battery supply simulation and DC voltage source.
Model：APGxx series
Voltage drop simulator – battery supply simulator and DC vo
...
Model：APS xxxxDSR Series
The APS xxxxDSR series is equipped with a four quadrant bipolar amplifier, which simulates various voltage changes on the wiring harness and can generate voltage drops, short-term interruptions, and other voltage changes.
Model：APS xxxxDSR Series
The APS xxxxDSR series is equipped with a four quadra
...
