Spike Voltage Simulator VSS 298

Model：VSS 298

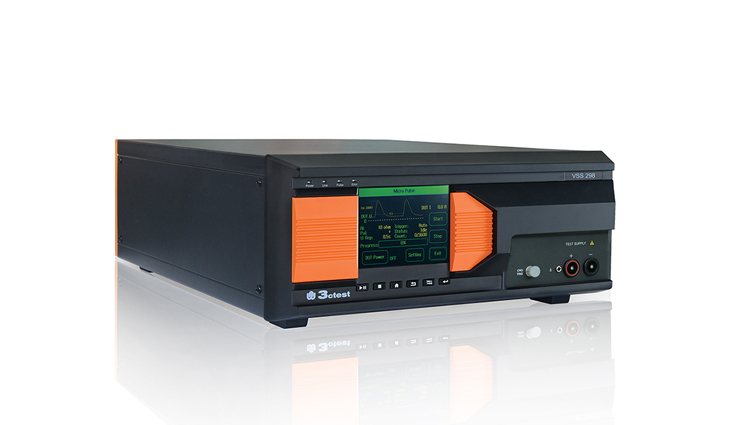

The spike voltage simulator VSS 298 is designed according to GJB 298 for the spike signal conduction immunity tests on power supply cables of aircrafts.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The VSS 298 is capable of generating up to 200 polarity alternating voltage spike signals to DUT in one second, the pulse interval can be set randomly from 5 ms to 1000 ms and peak voltage can be set from 50 V to 300 V, which can meet the requirement of spike signal sensitivity test on airplane power line. Polarity can be set to only positive, only negative, positive first then negative, negative first and then positive. DC coupling and protective network are built in.

Features:

  • 5.7” color touch screen front panel operation
  • Built-in multifunctional testing modules
  • With test sequencing function

Standard

  • GJB 298

Specifications

Technical Parameters
Pulse Voltage 50 V~300 V
Pulse Polarity positive, negative, positive first then negative, negative first and then positive.
Rise time <50 ns
Pulse Interval 5 ms~1000 ms
No. of Pulses 1~9999
Pulse Oscillatory Frequency 100 kHz ~ 500 kHz
EUT Power Supply DC 60 V, 30 A/50 A
General Parameters
Display Screen 5.7” TFT touch screen
Working Power AC 110 V/220 V (±10%), 50 Hz/ 60 Hz (AC 220 V 50 Hz in mainland China)
Fuse 6 A
Dimension 19”/4U
Weight Approx. 18.5 kg
Ambient Temperature 15 ℃ ~ 35℃
Relative Humidity 45%–75%
Atmospheric Pressure 86 kPa–106 kPa
