Stripline D1550/D1590

Model：D1550/D1590

As per ISO11452-5, D1550 is for Stripline 50 Ohm, D1590 is for Stripline 90 ohm.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

As per ISO11452-5, D1550 is for Stripline 50 Ohm, D1590 is for Stripline 90 ohm.

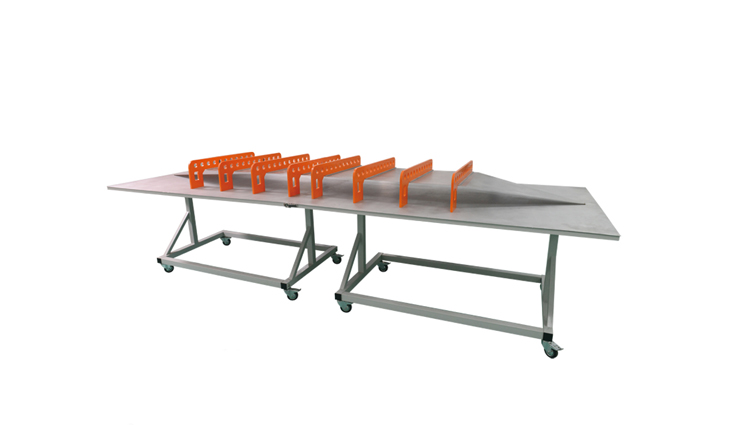

Our striplines are designed for immunity tests on automotive devices according to IS011452-5. The stripline is fixed on a table and is easy to move. The table can be sloped vertically in order to reduce the width. It is also possible to easily divide the stripline in two parts for the storage or during the transport. It is the stripline on the market able to carry out test up to 1 GHz with excellent return loss.

Standard

  • ISO 11452-5

Specifications

Specifications</th D1550 D1590
Frequency range 0-1 GHz 0-1 GHz
Maximum input power 1 kW continuous >200 W continuous

（> 100 with impedance adapter）
Wave impedance 377 Ω 377 Ω
Impedance 50 Ω 90 Ω
VSWR Better than 1.22 <1.92
Return loss Better than 20 dB >10 dB up to 1 GHz
Connector type N 50 Ω N 75 Ω
Height of the septum 15 cm over ground plane 15 cm over ground plane
Height of the table 95 cm 80 cm
Size (L x W x H) 430 x 150x 126 cm 350x90x95 cm
Weight About 140 kg About 100 kg

Downloads

Adobe PDF

Stripline D1550/D1590 Datasheet

Language: English
