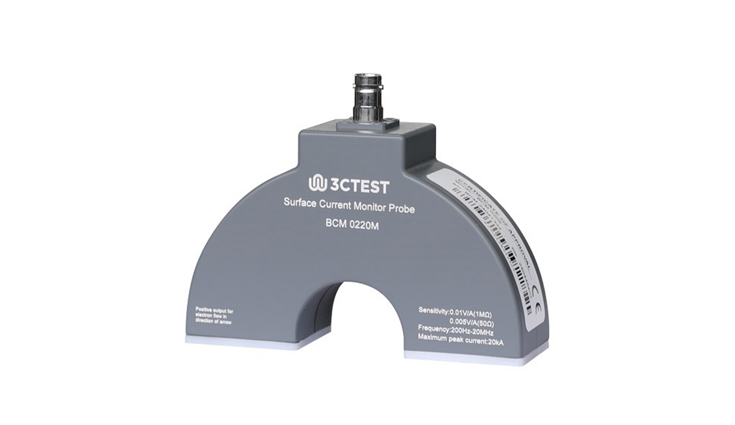

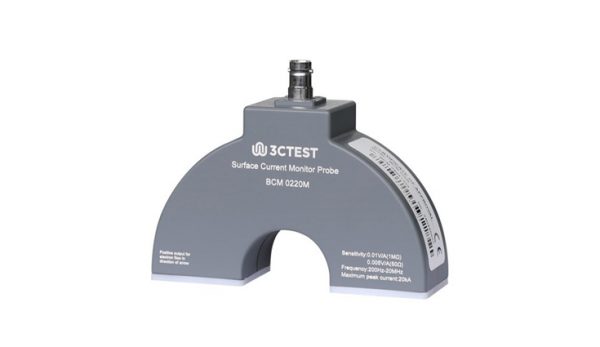

Surface Current Monitor Probe BCM

Model：BCM 0220M

The BCM 0220M surface current probe is used for measuring the induced current on the surface of conductors in electromagnetic radiation environments.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The BCM 0220M surface current probe is used for measuring the induced current on the surface of conductors in electromagnetic radiation environments. This product transfers surface induced current to the recording device in the form of voltage through electromagnetic coupling, and has the characteristics of waveform distortion free and physical isolation from the current carrier.

BCM 0220M broadband current monitoring clamp s21 curve

Explanation: When the load impedance is 50 Ω, the transfer impedance (dB) is s21+34dB+25dB;
When the load impedance is 1M Ω: transfer impedance (dB) = s21+34dB+6dB+25d.

Standard

Specifications

Technical Parameters：
Sensitivity* 0.01 V/A Frequency Range 200Hz-20 MHz
Output Impedance 50 Ω Internal Length 40 mm
Maximum Peak Current 20,000 A Foreign Minister 116 mm
Maximum Continuous Current (Effective Value) 140 A Thickness 40 mm
Rise Time 17.5 ns Interface Form BNC type
Ampere Second Product 1.2 A·s Working

Temperature

 0 ℃ ~ 65 ℃
Effective Length** 56 mm Weight 0.7 kg
*When the broadband current monitoring clamp is terminated at 50 Ω, the sensitivity (transfer impedance) is 0.005V/A;
**When measuring surface current, dividing the measured current value by the effective length of the probe is the surface current density, measured in A/m.

Downloads

Adobe PDF

Surface Current Monitor Probe BCM 0220M Datasheet

Language: English

Reviews

There are no reviews yet.

Be the first to review “Surface Current Monitor Probe BCM”

Your email address will not be published. Required fields are marked *
