Description

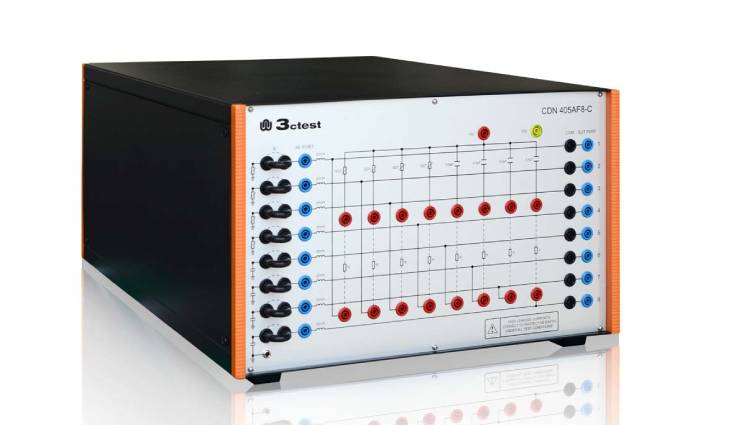

The CDN 405AF8-C is designed to conduct surge test on unshielded unsymmetrical interconnection lines as per figure 9 specified in IEC/EN 61000-4-5:2017 and applicable to surge combination waveform 1.2/50 μs, 8/20 μs with voltage up to 6 kV. It has four-line GDT coupling paths and four-line (0.5 μF) capacitor coupling paths, the tests of line-to-line, line-to-ground and four-line-to-ground can be conducted. Its powerful decoupling capability keeps auxiliary equipment from the impact of surge so as to ensure the test repeatability.
Features：
- Line-to-line, line-to-ground and 4-line-to-ground tests can be conducted.
- No additional protection for auxiliary equipment is Needed.
- Through replacing current-limiting resistors, other surge waveform tests can be conducted.

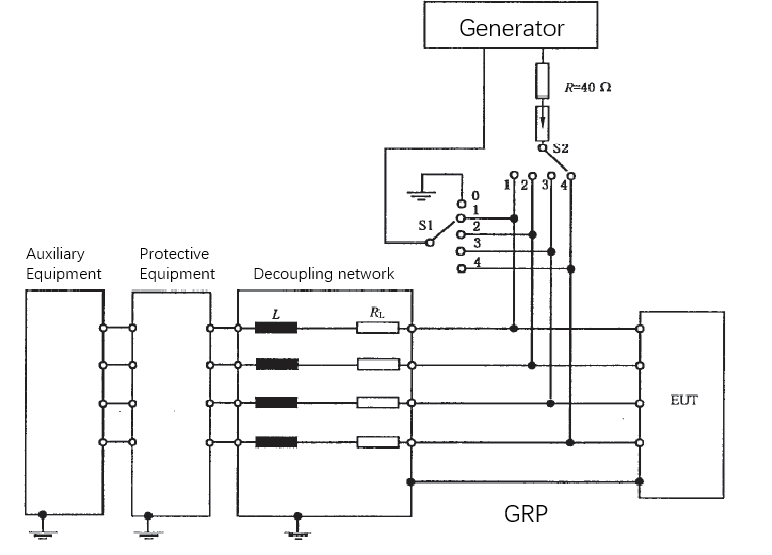

Schematic Diagram:
As per IEC 61000-4-5：2017 Figure 9
