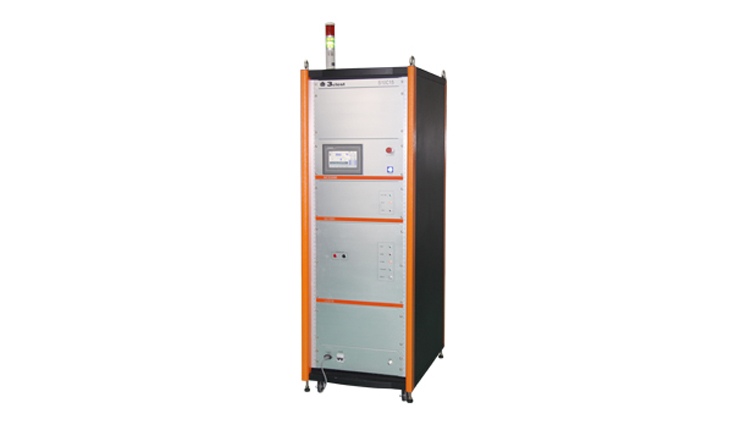

Surge (Impulse) Current Simulator

Model：CSG 2050

CSG2050 surge (impulse) current simulator is based on 3ctest third-generation intelligent multiple function comprehensive test simulator.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

CSG2050 surge (impulse) current simulator is based on 3ctest third-generation intelligent multiple function comprehensive test simulator. Programmable controller and computer technology is applied for control to simple system construction and enhance system reliability. It highly enhance test efficiency for high voltage and current test. Unique color touch screen and friendly human-machine interface with easy operation. Setting simple test requirements on parameters setting page, all test can be done automatically. It is featured with high system integration and intelligence, easy operation and safety system to save time and space.

  • color touch screen 7 inch LCD
  • PLC control system, automatic control system
  • current and voltage LCD display
  • one-button test with programmable function
  • RS232 communication port for remote control
  • internal ground device and safety lock

Standard

  • GB/T 16896.1
  • ANSI C12.1-2001
  • GB/T 16927-1997

Specifications

Technical Parameters
Model CSG2050
Output waveform 20/50μs（±10%） current wave
Output peak current 20kA±10%

Reversed polarity peak ＜20％
DUT residual voltage < 3kV
Voltage polarity +/- （automatic switch）
Charging time 10s~999s
Charging voltage instability Less than 1%
Trigger mode Automatic or manual, single trigger
Trigger malfunction Less than 1%
Trigger range 100% rated charging voltage
Measurement display resolution Better than 3%
Insulation strength ≤500V RMS（common port COMMCN to reference

ground PE）
Auxiliary mains voltage 220V(±10%)/50Hz
Auxiliary mains current <10A（continuous）
Calibration parameters
Rise time 20 μs±10%
Time to half value 50μs±10%
First measurement range

Short circuit output peak current

 1kA-0%/﹢30% @2kV

2kA-0%/﹢30% @4kV

3kA-0%/﹢30% @6kV

4kA-0%/﹢30% @8kV

5kA-0%/﹢30% @10kV
Second measurement range

Short circuit output peak current

 4kA-0%/﹢30% @2kV

8kA-0%/﹢30% @4kV

12kA-0%/﹢30% @6kV

16kA-0%/﹢30% @8kV

20kA-0%/﹢30% @10kV
General Data
Power supply AC220V ± 10%，50/60Hz
Temperature -10-+40℃
Humidity 35%-85%RH（no condensation）
Ground resistance No more than 0.5Ω
Dimension 1730x600x700mm（35U)
Weight Approx. 200kg
No conductive dust, no fire or explosion danger, no corrosive metal and insulation air.

Waveform of mains voltage is sine wave. The THD is <5%.

Downloads

Adobe PDF

Surge (Impulse) Current Simulator CSG2050 Datasheet

Language: English

Reviews

There are no reviews yet.

Be the first to review “Surge (Impulse) Current Simulator”

Your email address will not be published. Required fields are marked *

Related products

  • Impulse Current Generator

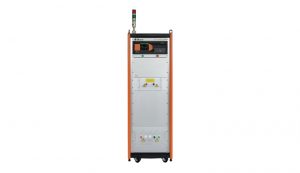

    Impulse Current Simulator S10C series
