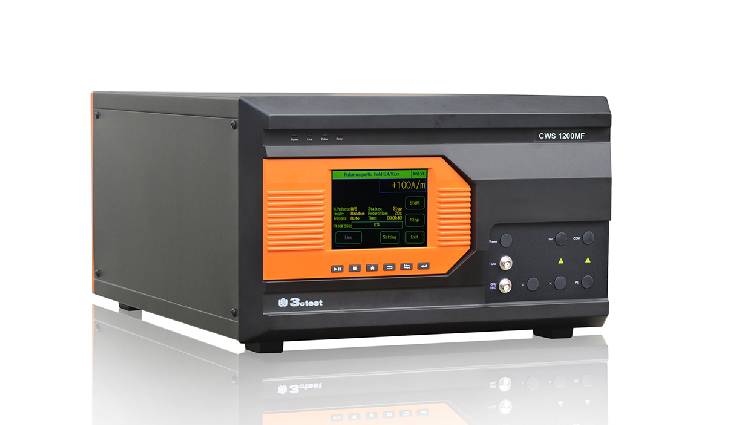

Surge pulsed magnetic field simulator CWS 1200MF

Model：CWS 1200MF

The Impulse Magnetic Field Generator Impulse Magnetic Field Simulator CWS 1200MF is an intelligent surge pulsed magnetic field simulator to meet international standards and kinds of product standards for pulse magnetic field immunity tests.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

CWS 1200MF is an intelligent surge pulsed magnetic field simulator to meet international standards and kinds of product standards for pulse magnetic field immunity tests. The magnetic field intensity is up to 1200A/m（Special requirements can be customized.）
Meet the immunity test requirements specified in CE and CCC certifications.
Fully automatic control by touch screen operation and offer you kinds of accessories to meet the applications of many EUTs.

Features:

  • 5.7-inch color touch screen operation on the front panel
  • Simple operation and test sequence scheduling
  • External magnetic coil, meet IEC61000-4-9
  • Ethernet interface, RJ45, for PC remote control, and printing test reports

Standard

  • IEC 61000-4-9
  • GB/T 17626.9
  • GB/T 17626.5（optional）
  • EN 61000-4-9
  • UL1449
  • ITU-T K.20
  • ITU-T K.12
  • ITU-T K.45
  • IEC 61000-4-5（optional）

Specifications

Technical Parameters
Display screen 5.7 inch TFT Touch Screen
Range of working power supply AC 110 V/220 V，±10%，50/60 Hz
Fuse 6 A
Max. Power dissipation 200 W
Communication mode Ethernet, RJ45
Auxiliary interface D-sub 25 p
External trigger input BNC, 5 V TTL
CRO trigger output BNC, 5 V TTL
Running control input BNC, 5 V TTL
Output of Warning lamp 0 – 220 V AC 10 A / 0 – 48 V DC 3 A (The power depends on the types of external signal lamp)
Safety circuit Stop working when the safety circuit is not closed
Failure detection LCD will display the failure on the front panel and interrupt instrument working
Instrument working status indicator LED on the front panel indicates and LCD displays
Instrument grounding connection Use flat ground wire
Detection output mode Standard 1m coaxial cable
Size of crate (W*H*D) 19 inch/6U
Weight Approx. 30 Kg
Temperature range 15–35 ℃
Humidity range 45%-75%
Air pressure range 86 kPa～106 kPa
Pulse magnetic field test
Range of output magnetic field 100 A/m～1200 A/m（single-turn 1000 mm*1000 mm）
Waveform Front time: 8 μs ±20%, Peak to half value: 20 μs ±20%
Polarity +/-/alternate
Trigger mode Auto, manual, external signal trigger
Pulse period 5-99 s (the shortest time depends on the test current)
Number of test times 1-999
Size of coil 1000*1000
Shape of coil Rectangle
Turns of coil Single turn
