Description

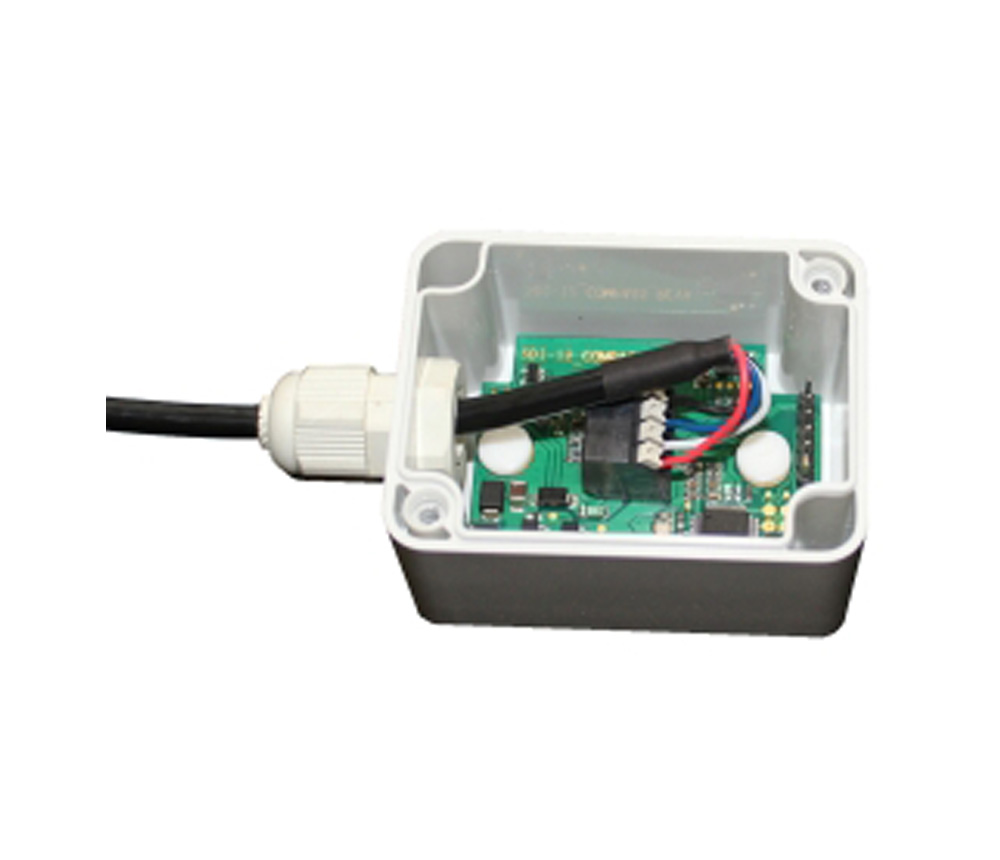

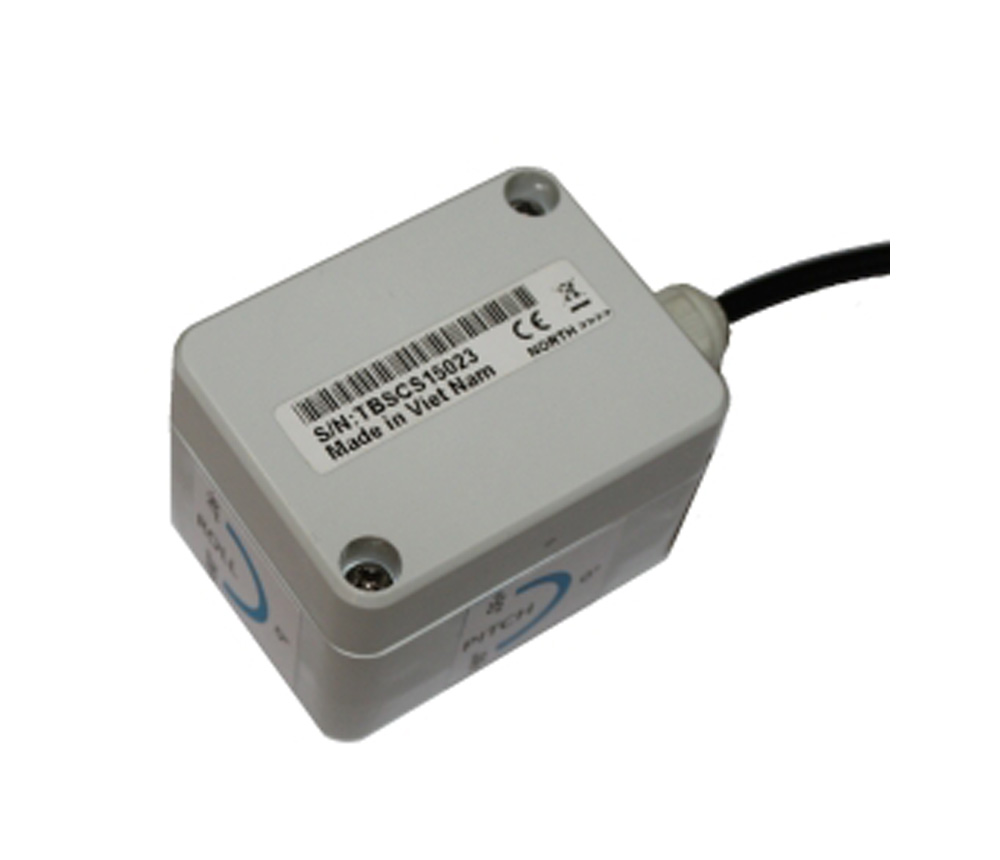

The TBSCS1 is a 3D compass and inclination sensor with SDI-12 interface. It measures heading, roll angle and pitch angle.
The sensor is used in agricultural yield applications to monitor the operation of center pivot irrigation systems or the status of flood gates
SPECIFICATIONS
- 3D Compass and inclination sensor
- Measurement range: 0° to 360°heading
- -90° to +90° roll, -90° to +90° pitch
- Measurement response: 1 sec
- SDI-12 Standard V1.3
Plug and Play - 6 – 16V supply voltage
- Less than 40µA idle current
- Operating Temperature Range: – 40°C … + 80°C
- Weight: 80g
- Excellent price-performance ratio
TARGET APPLICATIONS
- Monitoring of flood gates
- Monitoring of center pivot irrigators
