TekBox TBSLS10

Code: TBSLS05-1

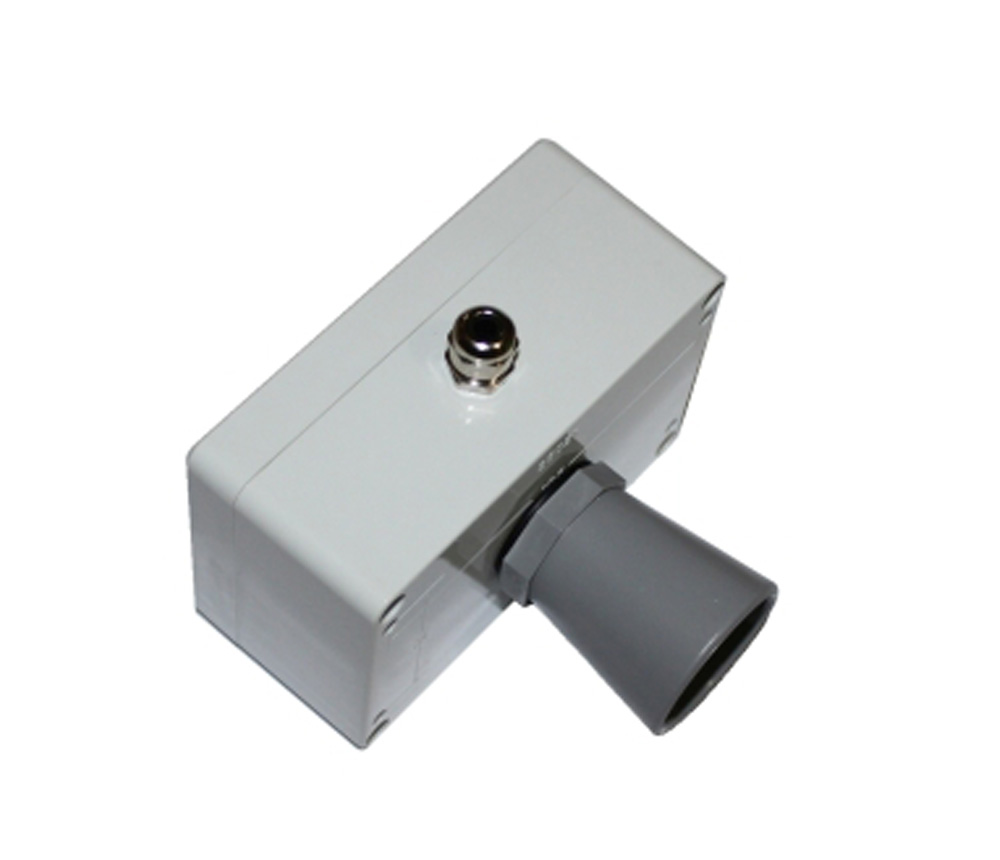

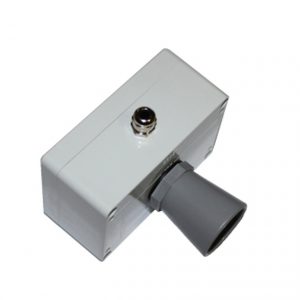

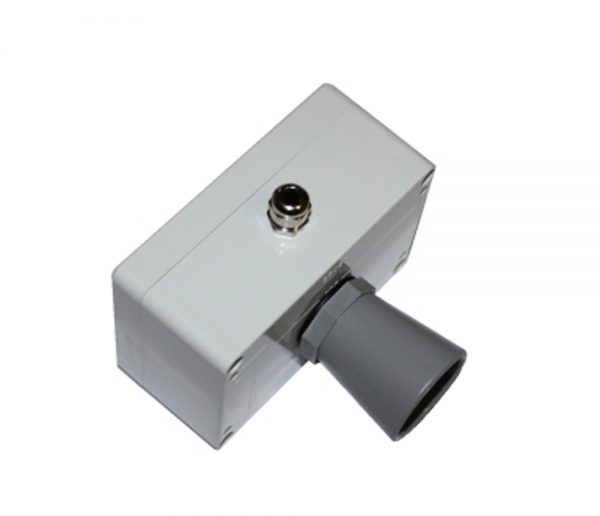

The TBSLS10 is ultrasonic level sensors with SDI-12 interface. The TBSLS10 is designed for a measurement range of 30cm to 10m . The TBSLS05S is a variant which is also capable of snow depth measurement. Stable, reliable range readings and excellent noise rejection make the sensor easy to use. The sensor automatically handles acoustic noise and provides a typical accuracy of 1% or better

₹70,990.00 ₹58,990.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The TBSLS05 and TBSLS10 are ultrasonic level sensors with SDI-12 interface. The TBSLS05 is designed for a measurement range of 30cm to 5m and the TBSLS10 covers a range of 50cm to 10m. The TBSLS05S is a variant which is also capable of snow depth measurement. Stable, reliable range readings and excellent noise rejection make the sensor easy to use. The sensor automatically handles acoustic noise and provides a typical accuracy of 1% or better

SPECIFICATIONS

  • TBSLS05 measurement range: 0.3 – 5m
  • TBSLS10 measurement range: 0.5 – 10m
  • Resolution: 1mm
  • Accuracy: typically 1% or better
  • Acoustic noise suppression
  • Internal temperature compensation
  • IP67 rated
  • Operating voltage: 6V … 16V
  • Operating current: 8mA; sleep mode: 40µA
  • Operating Temperature Range: -40°C … 65°C

APPLICATION



  • Water level measurement
  • Tank level measurement
  • Corn level measurement
  • Snow depth measurement (TBSLS05S

Downloads

Reviews

There are no reviews yet.

Be the first to review “TekBox TBSLS10”

Your email address will not be published. Required fields are marked *

Related products

  • Sensors

    TekBox TBSHTP05

    The TBSHTP05 is an air humidity, temperature and barometric pressure sensor with SDI-12 interface. The sensing elements are located on a PCB in the tip of the sensor. The acquisition circuit is completely over-moulded. Temperature measurement is carried out with a 0.1°C precision PT1000. Humidity measurement is based on a precision sensing element on a ceramic substrate. An additional MEMS chip measures barometric pressure. The sensor tip is protected with a replaceable filter.

    The TBSHTP05 is an air humidity, temperature and barometric pressure sensor with SDI-12 interface. T

    ...
    (0 reviews)
    ₹56,890.00 ₹47,590.00 Add to cart
  • Sensors

    TekBox TBSST04_3

    TBSST04 is a soil temperature sensor with SDI-12 interface. It allows measuring the temperature on up to 3 different depth levels (up to 3 meters for each segment). The product is available in 3 variants, with one, two or three temperature sensors that are based on Swiss made PT1000 with 0.1 C accuracy.TBSST04_3: 1 PT1000 sensor at the tip (segment length: 33cm)

    TBSST04 is a soil temperature sensor with SDI-12 interface. It allows measuring the temperature on u

    ...
    (0 reviews)
    ₹39,990.00 ₹32,990.00 Add to cart
    Sensors

    TekBox TBSSR1

    The TBSSR1 is based on the popular SP- Lite2 pyranometer of Kipp&Zonen. It contains a SDI-12 interface / data acquisition board potted inside a cavity in the base of the housing. Consequently the TBSSR1 comes in exactly the same form factor as the original SP- Lite2. The sensor offers a resolution of 0,25W/m2. It is already calibrated to the individual sensitivity of the SP Lite2.

    The TBSSR1 is based on the popular SP- Lite2 pyranometer of Kipp&Zonen. It contains a SDI-12 int

    ...
    (0 reviews)
    ₹177,790.00 ₹147,500.00 Add to cart
    Sensors

    TekBox TBSCS1

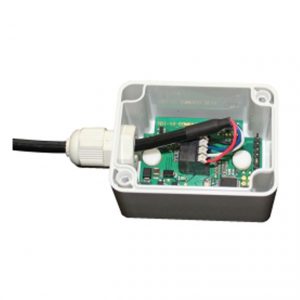

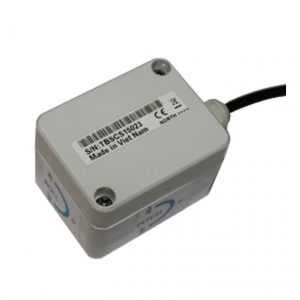

    The TBSCS1 is a 3D compass and inclination sensor with SDI-12 interface. It measures heading, roll angle and pitch angle.
