TekBox TBCP3-1000 RF current monitoring probe, 17mm 1GHz

Code: TBCP3-1000

The TekBox TBCP2-30K400 is a snap-on RF current monitoring probe. The probe has a very flat response from 30kHz to 500 MHz and is characterized over the frequency range from 10 Hz to 500 MHz.

₹115,890.00 ₹85,890.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

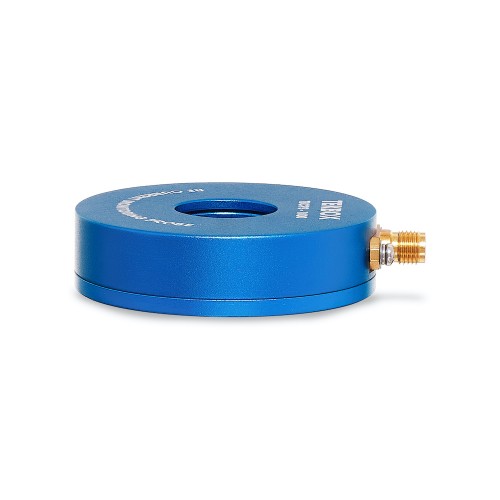

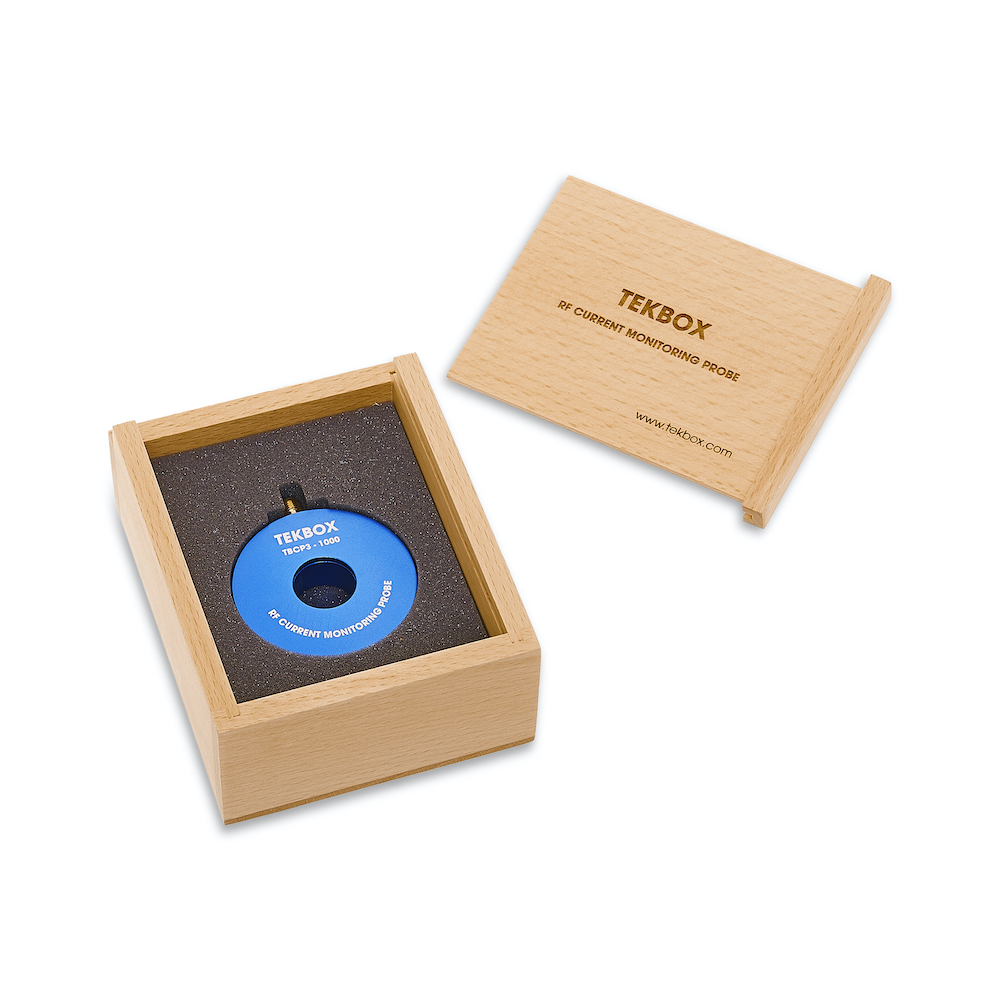

The TekBox TBCP3-1000 is a fixed aperture RF current monitoring probe. It has a very flat response with a 3dB bandwidth of 1 GHz and is characterized and usable over the frequency range from 30kHz to 1 GHz. The aperture of the RF current monitoring probe is 17 mm. Its transfer impedance is close to 20 dB Ohm in the range from 3 MHz to 1 GHz.

TekBox TBCP3-1000 main specs:
Characterized frequency range: 30 kHz to 1 GHz
Aperture diameter: 17 mm
Outside diameter: 52 mm
Height: 14 mm
Weight: 55 g
Connector type: SMA female
Transfer impedance: 20 dBΩ
Max. primary current (DC – 400 Hz): 30 A
Max. primary current (RF): 4 A
Max. core temperature: 125 °C
