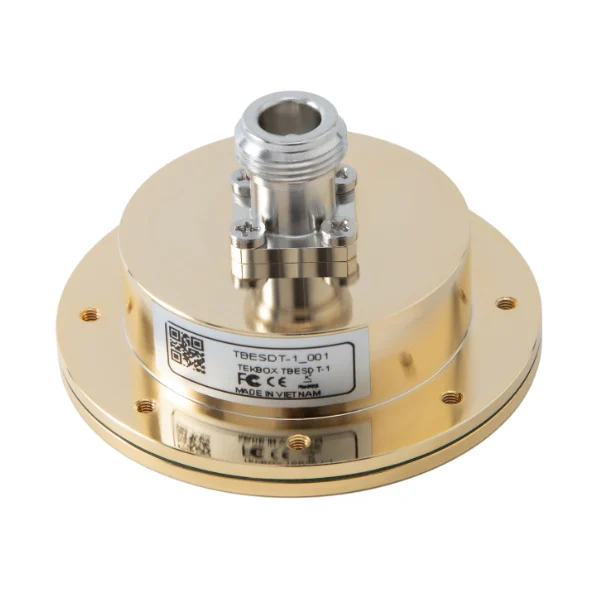

TekBox TBESDT1 ESD TARGET

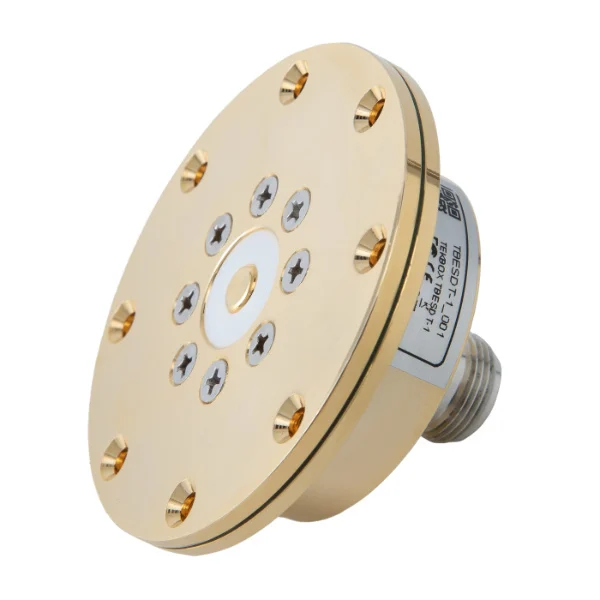

The TBESDT1 ESD-Target is a current sensing transducer to verify ESD-Simulators. It is used to take measurements compliant with IEC 61000-4-2 up to 4 GHz.

• Compliance: IEC 61000-4-2
• Resistance: 2.08 Ω ± 1%
• Transfer impedance:
  • 2 V/A
  • 0.2 V/A with 20 dB attenuator
• Frequency range:
  • DC – 4 GHz
  • < ± 0.5 dB up to 1 GHz
  • < ± 1.2 dB up to 4 GHz
• Max. pulse amplitude: ± 30 kV

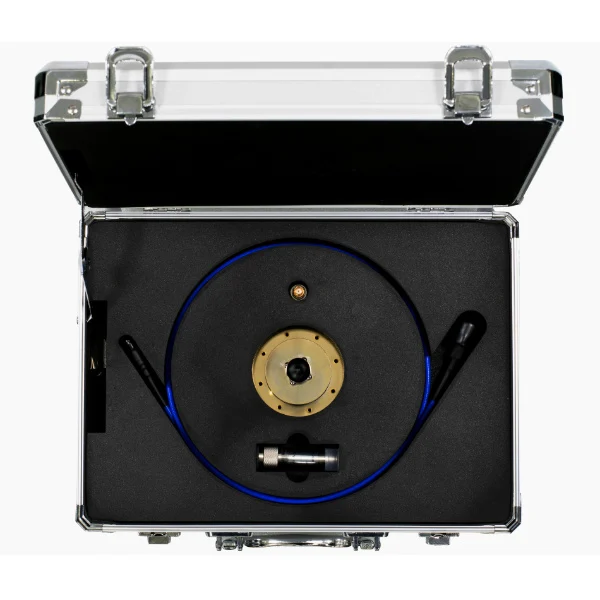

• Deliverables:
  • TBESDT1 ESD-Target
  • 20 dB attenuator
  • N-Male to SMA-Male coaxial cable, 100 cm, RM141
  • SMA-Female to BNC-Male coaxial adapter

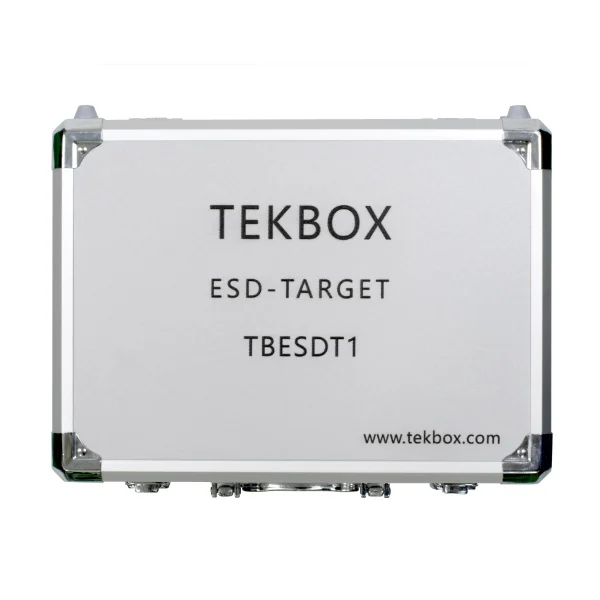

  • Aluminium carrying case
  • Factory calibration certificate, NIST traceable
• ESD-Target weight: 0,5 kg
• ESD-Target dimensions: D70 mm x H40 mm
• Case weight: 2.1 kg
• Case dimensions: 340 mm x 260 mm x 110 mm
