Description

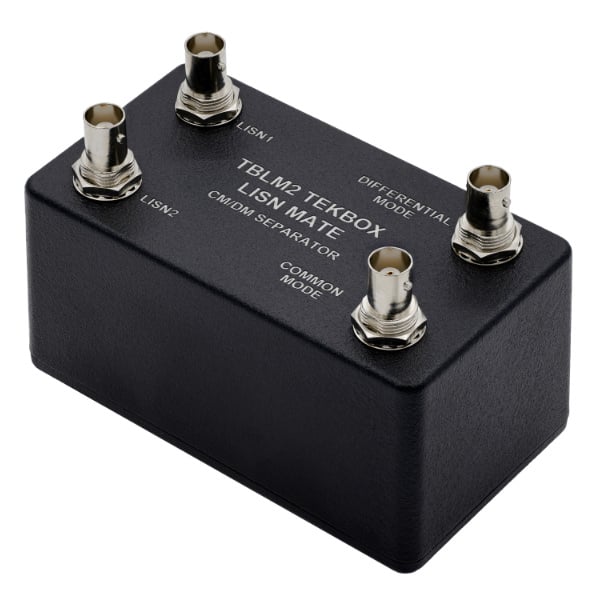

The TBLM2 is is a Common Mode / Differential Mode – separator companion device for LISN. The LISN Mate is
connected to the output of a LISN inserted into the positive supply line and to a second LISN inserted into the
negative supply line.
The conducted noise signal at the output of a LISN is the sum of common mode and
differential mode noise. The LISN mate separates it into the common mode and differential mode components,
with each signal component available at a separate BNC port. The TBLM2 can be used in the frequency range
from 9 kHz to 110 MHz.
SPECIFICATIONS
- Nominal frequency range: 150 kHz – 100 MHz
- Usable frequency range: 9kHz – 110 MHz
- Port impedance
- │ZLISN1│, │ZLISN2│,│ZCM│: 150 kHz – 1 MHz: 30…55 Ohm, 1 MHz -30 MHz: 50….60 Ohm, 30 MHz – 100 MHz: 50….70 Ohm
- │ZDM│: 150 kHz – 1 MHz: 30…50 Ohm, 1 MHz -30 MHz: 40….50 Ohm, 30 MHz – 100 MHz: 40….70 Ohm
- │ZLISN1│: independent of the termination at the LISN2 port
- │ZLISN2│: independent of the termination at the LISN1 port
│ZCM LISN1-LISN2│: 25 Ohm nominal - │ZDM LISN1-LISN2│: 100 Ohm nominal
- Maximum RF level at any BNC port: 27dBm
- Maximum DC current at any BNC port: 30 mA
