Description
- Frequency range: 40 MHz..3 GHz
- Gain: typ. 20 dB
- Maximum input power: +9 dBm
- Maximum output power: +22 dBm (150 mW)
- IP3 (OIP3): +40 dBm
- Noise: typ. 3..4 dB
- Input + Output: SMA connectors (female)
- Power supply: 5 V, 235 mA (Mini-USB-B)

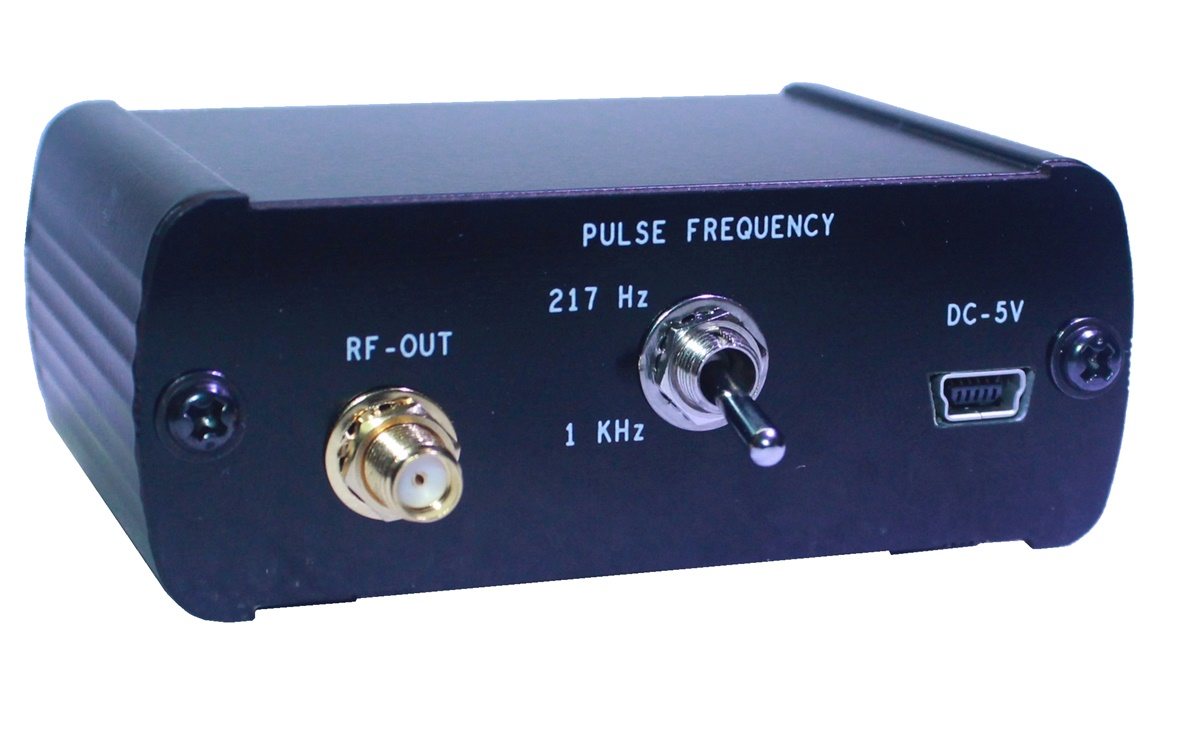

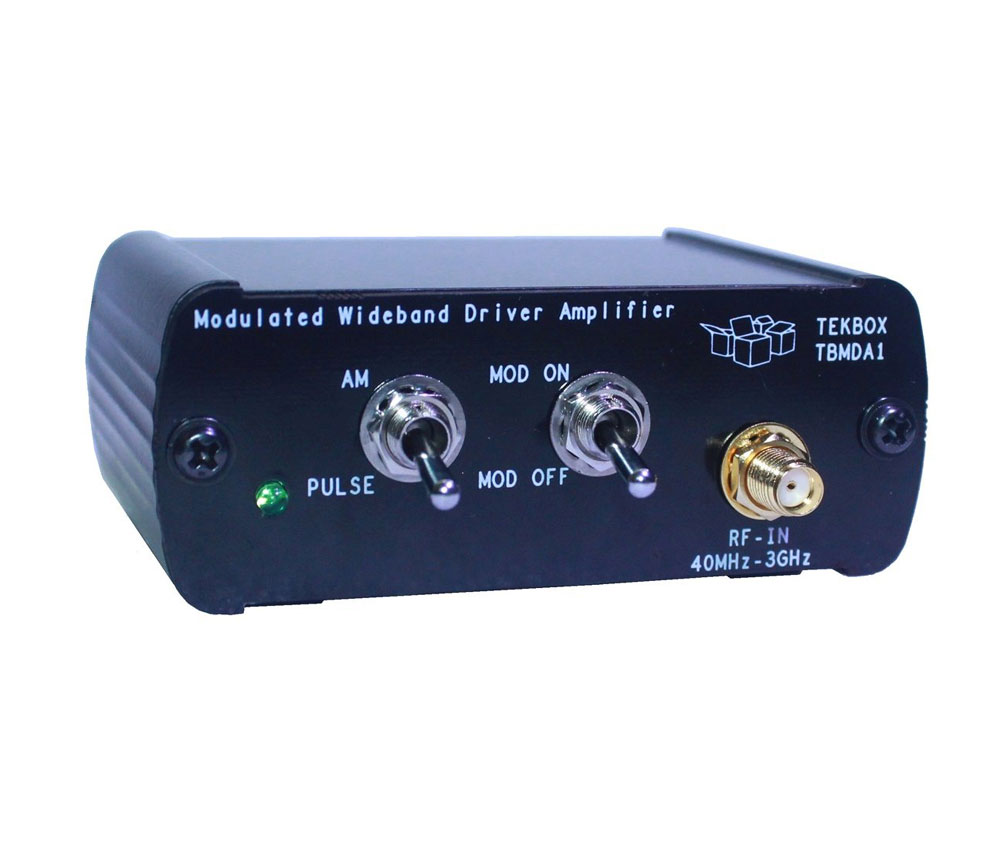

TekBox TBMDA1
Related products
Pre/Power-AmplifierTekBox TBWA2/40dB
Low-distortion 40 dB preamplifier, ideal for use with near-field probes. These amplifiers produce significantly less non-linear distortion than the spectrum analyzers built-in preamplifier.
2 years warranty
Low-distortion 40 dB preamplifier, ideal for use with near-field probes. These amplifiers produce si
...(0 reviews)₹32,890.00₹28,790.00 Add to cart

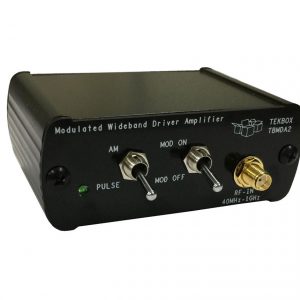

Pre/Power-AmplifierTekBox TBMDA2
HF power amplifier 20 dB / 500 mW with modulation feature for driving antennas, near field probes and TEM cells from a spectrum-analyzer TG-output.
2 years warranty
HF power amplifier 20 dB / 500 mW with modulation feature for driving antennas, near field probes an
...(0 reviews)₹60,990.00₹55,990.00 Add to cart

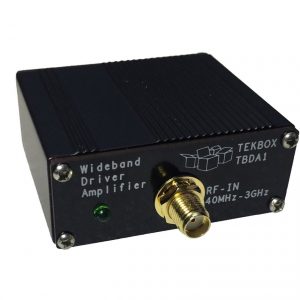

Pre/Power-AmplifierTekBox TBDA1/28
