Description
- Frequency range: 10 MHz..1.5 GHz
- Gain: typ. 20 dB
- Maximum input power: -8 dBm
- Maximum output power: +27 dBm (500 mW)
- Input + Output: SMA connectors (female)
- Power supply: 5 V, 700 mA (Mini-USB-B)

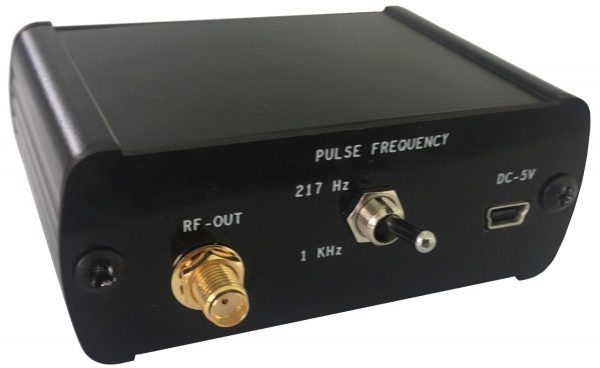

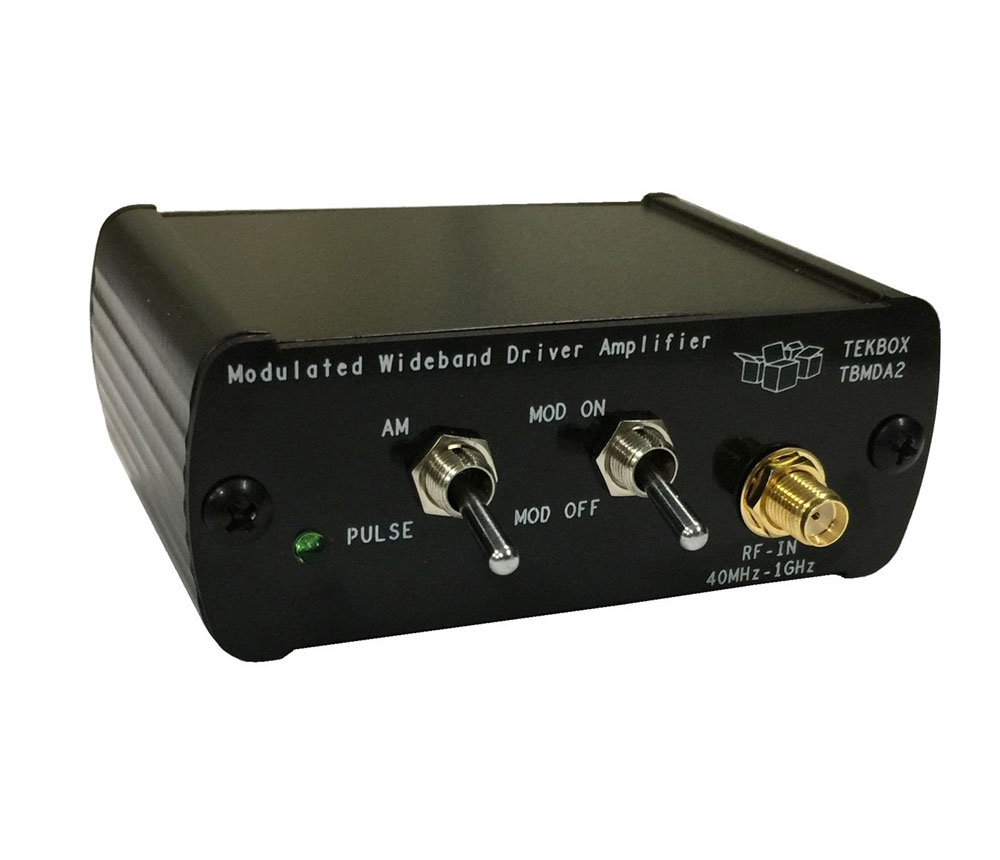

TekBox TBMDA2
Downloads
Datasheet
TBMDA2-Datasheet
Language: English
File Size: 759.76 KiB
Release Date: 27.12.2018
