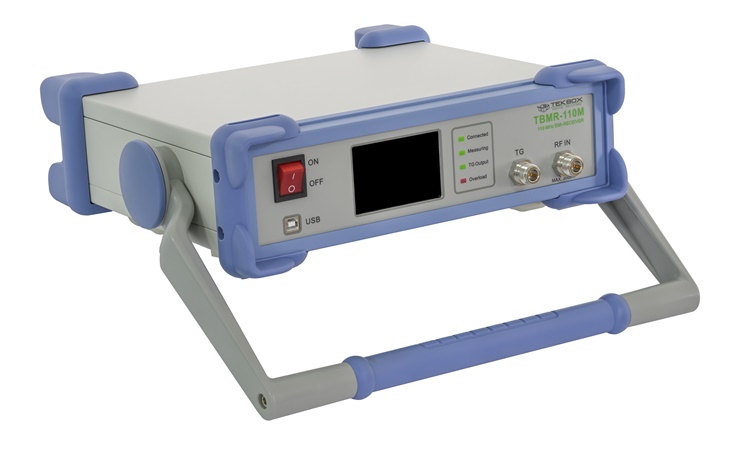

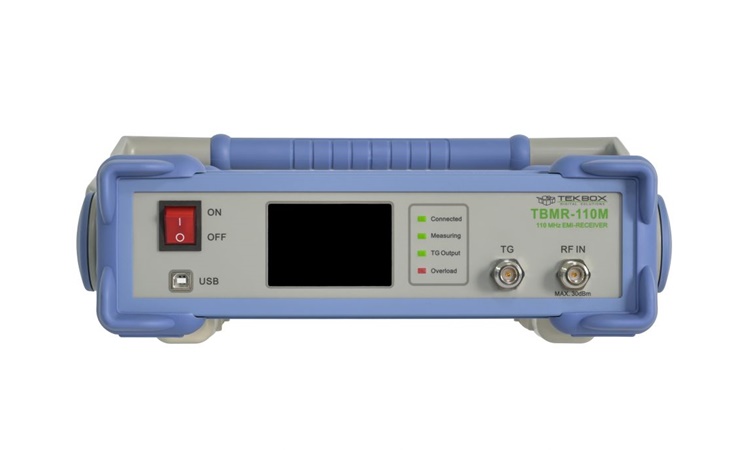

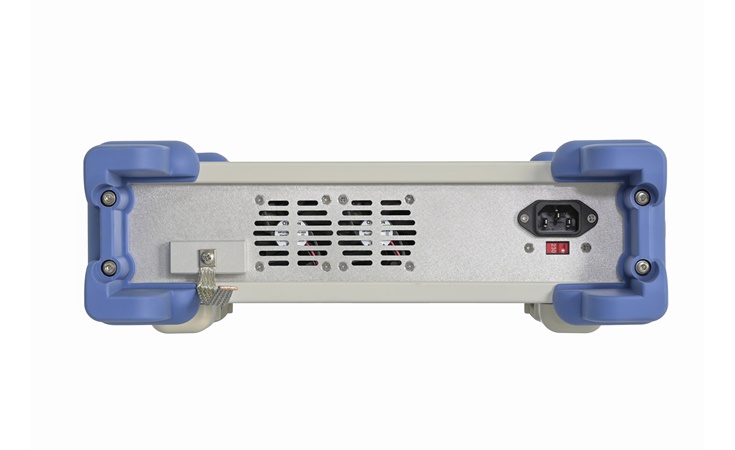

TBMR-110M EMI-ANALYZER DC-110 MHZ
International EMC standards require various spectrum measurement methods and equipment to ensure that the electromagnetic emissions of the EUT do not exceed the specified limits. The TBMR-110M EMI Analyser is designed to perform conducted emission measurements. Its affordability and versatility make it a perfect tool for engineers performing pre-compliance measurements during the design process. Its ease of use also enables importers of electronic products to periodically assess whether their suppliers are delivering consistent quality in terms of EMC compliance, without having to outsource to test laboratories. High accuracy, versatility and fast measurements are just some of its many features.
The TBMR-110M cobines the following modules:
- EMI Analyzer 1 Hz – 110 MHz (Measurement Receiver)
- Spectrum Analyzer
- Tracking Analyzer 1 Hz – 110 MHz
- Oscilloscope 250 MS/s, DC – 110 MHz
- Demodulator
- IQ Stream Generator
- Remote Control
SPECIFICATIONS
EMI Analyzer 1 Hz – 110 MHz (Measurement Receiver)
- – 162 dBm/Hz noise floor down to 1 kHz
- 7-band hardware pre-selector filter bank
- 30 dBm maximum input power
- CISPR-16, ANSI and MIL-STD compliant detectors
- Peak, Quasi-Peak, Average, CISPR-Average, RMS and CISPR-RMS detectors working in parallel.
- Sweep, STFFT and direct parallel resolution bandwidth setting (-3 dB and -6dB)
- Numerous predefined Standards, ready to load and use
- Pre-measurement with selective Peak measurement
- Direct fast compliant STFFT measurement
- Many pre-defined transducers, antenna factors and various other compensation files
- Many data manipulation, display and documentation features
- Direct control from EMCView or standalone operation
- Quick load of predefined setups
Spectrum Analyzer
- True DC – 110 MHz measurement range
- Tracking Generator
- 0.1 Hz to 3.5 MHz arbitrary RBW and VBW setting
- Zero Span operation with time domain triggering
- Linear, log amplitude and frequency display
- Sweep, STFFT and direct parallel resolution bandwidth setting
- Parallel RMS, Pos./Neg. peak and average detector
- Trace Memory option, normalization
- Equation based trace display
- Peak hold
- Noise marker, max and band power display
- Quick load of predefined setups
Tracking Analyzer 1 Hz – 110 MHz
- Linear and logarithmic sweep
- -50 dBm to 0 dBm adjustable TG power
- 120 dB dynamic range
- Use of power correction file and level correction file
- Quick load of predefined setups.
Oscilloscope 250 MS/s, DC – 110 MHz
- 1 ns/DIV to 1 s/DIV horizontal resolution
- Interpolated sampling up to 4 GS/s
- Real-time Sampling up to 250 MS/s, 14 Bit
- Up to 16 MS sampling size
- Various Trigger options
- Vertical CIC Filter option for noise reduction
- Many automatic measurement features
Demodulator
- Direct demodulation into the PC sound system
- FM, AM and SSB demodulator
- Adjustable bandwidth, center frequency and demodulator parameters
- Automatic demodulation parameter measurements
IQ Stream Generator
- GNU-Radio data source
- Directly stream floating point I and Q data into file or network
- Adjustable center frequency and bandwidth
Remote Control
- Direct remote control of the EMI Analyzer over network
- Text based protocol
- EMCview compatible
MARKETS: Automotive, Avionics, Components, Industrial, IT, Medical Electronics, Military, Power Generation, RF, Space, Wireless/Telecom
TEST STANDARDS: ANSI C63.4, CISPR 16-1-1, CISPR 32 (EN 55032), DO-160 Section 20, MIL-STD-461
ACCESSORIES
- 1x type-A to type-B USD cable
- 1x country specific IEC power cord
- 1x TBFL1 combined attenuator
- EMCview software
