TekBox TBST120/60/60/2-B

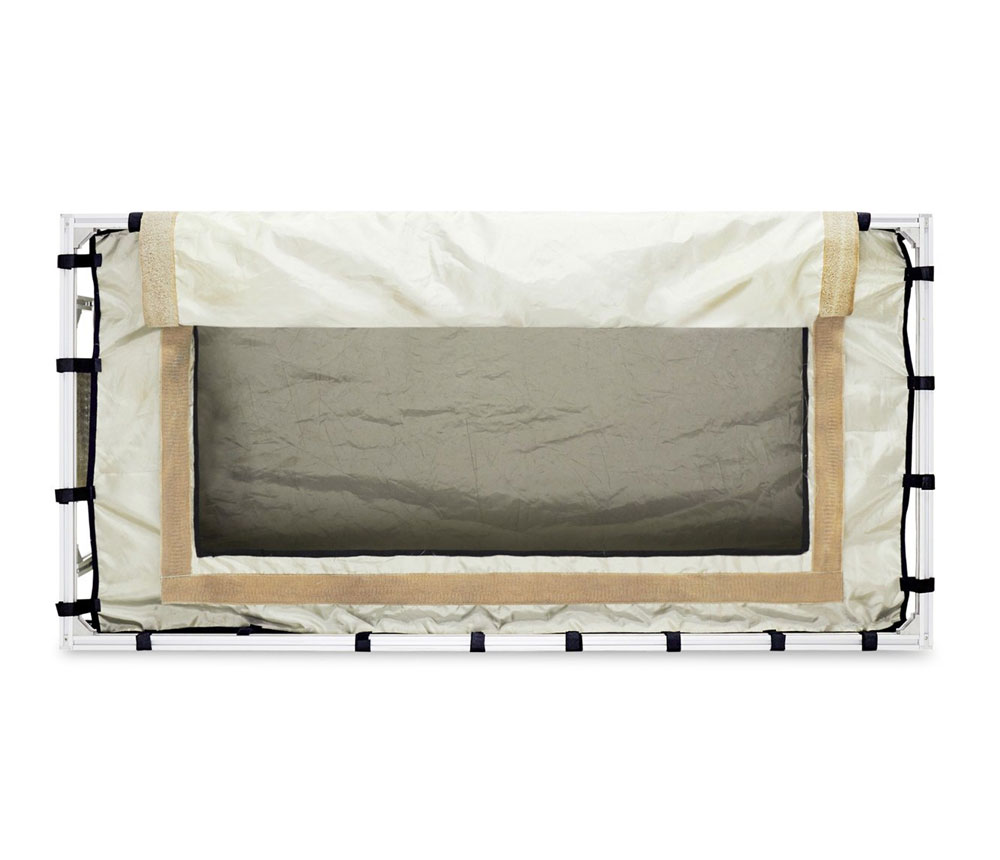

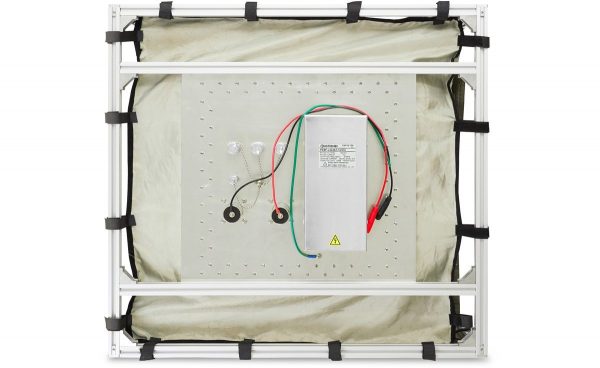

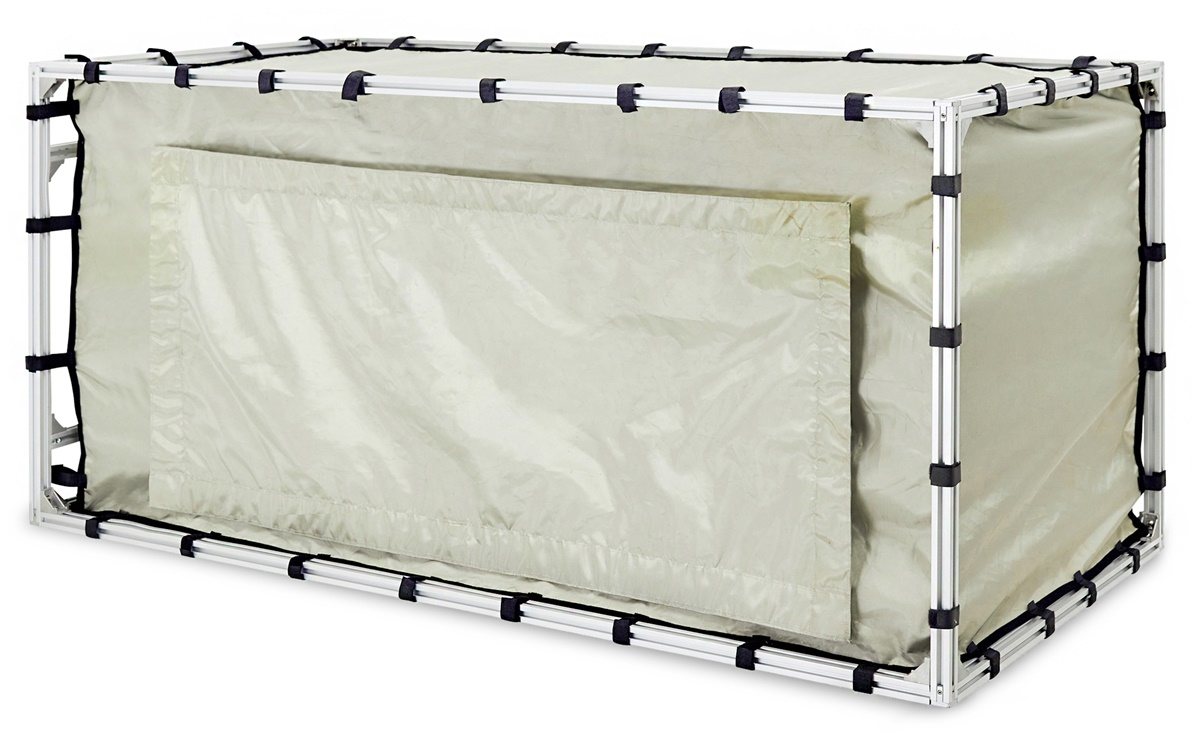

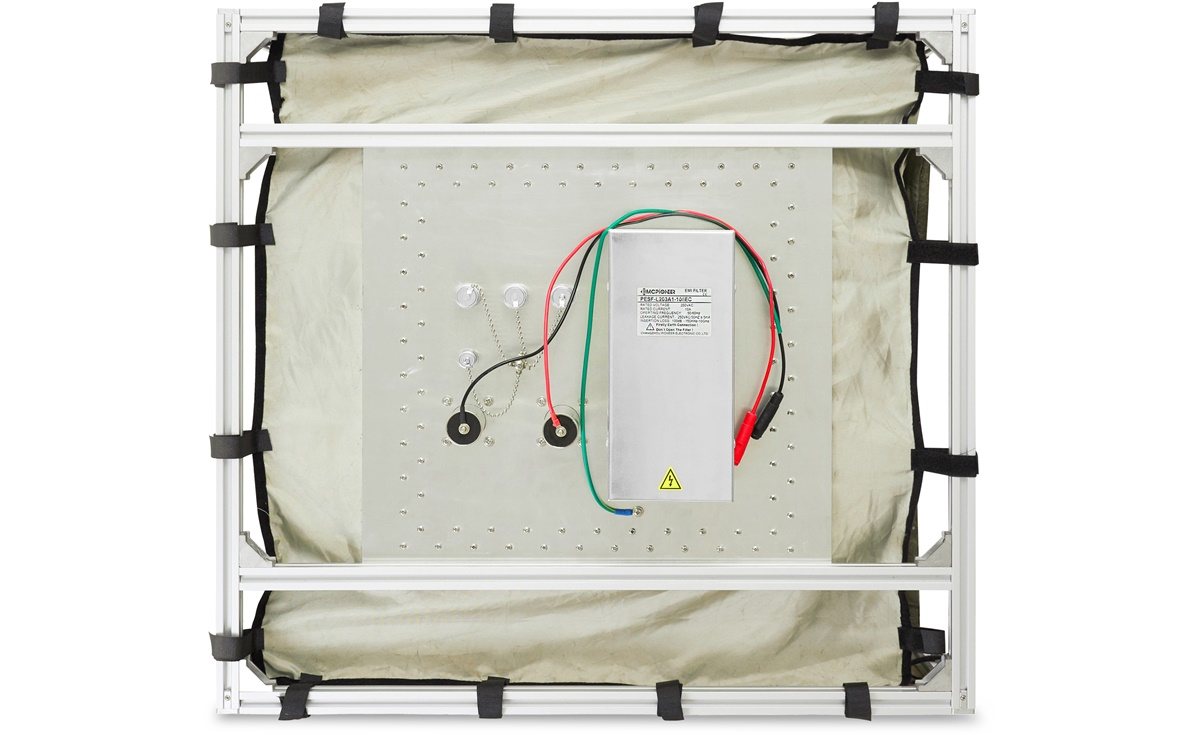

Tekbox TBST-120/60/60/2 EMC shielding tent is the ideal complement to your EMC pre-compliance test with Tekbox TEM-cell TBTC3. Dimensions: 120 x 60 x 60 cm.

2 years warranty

₹418,190.00 ₹328,990.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Specifications:

  • Outer dimensions: 120 cm x 60 cm x 60 cm
  • Opening dimensions: 85 cm x 35 cm
  • Attenuation: >58 dB in the range DC to 1.5 GHz
  • Frame: 20 mm x 20mm extruded aluminium profiles
  • Shielding: 2 layers of conductive fabrics
  • Seal: conductive Velcro tape
  • Suspension: Velcro stripes
  • Weight: 10.8 kg

The setup requires a Phillips screwdriver, a 2 mm Allen key and some time (>= 1 hour).
