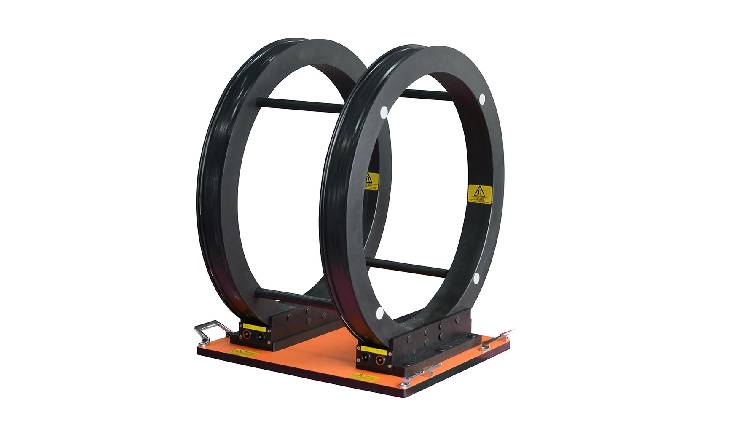

The TYXH 06200 Helmholtz coils is designed to generating DC and alternating magnetic field (together with suitable signal source and compensation network) as per ISO 11452-8. With features of large testing range and good magnetic field uniform, TYXH 06200 can meet testing requirement of the magnetic field sensitivity under 500 kHz specified in kinds of standards. It can be used widely in EMC conductive sensitivity (immunity) test.
| Technical Parameters | |
|---|---|
| Total Number of Turns | 32 (16 × 2) |
| Max. Coil Current | 55 A, 5 min |
| Standard Current | 33 A, continuous |
| Max. Magnetic Field Strength | 2100 A/m @ 55 A, 5 min |
| Standard Magnetic Strength | 1260 A/m @ 33 A, continuous |
| Coil Factor | 31.6 dB/m |
| Coil Diameter | 600 mm |
| Frequency Range | DC – 500 kHz |
| Coil Total Inductance | ≤ 820 μH |
| DC Resistor | ≤ 0.15 Ω |
| Interface Type | 4 mm Banana plug |
| Operating Temperature | 0 ℃ ~ 65 ℃ |
| Weight | 38 kg |
Model：TYXH 06400
TYXH 06400 is used to produce d.c and alternating magnetic field from DC to 30 kHz together with appropriate signal source and compensation networks.
Model：TYXH 06400
TYXH 06400 is used to produce d.c and alternating magnetic fi
...
Model：TCXS223
The Power frequency magnetic field coil TCXS223 is specially designed according to the characteristics and requirement of magnetic field immunity tests conducted on electrical and electronic products.
Model：TCXS223
The Power frequency magnetic field coil TCXS223 is specially des
...
Model：TCXH1110
Helmholtz coil is designed to produce standard magnetic field with wide applications.
Model：TCXH1110
Helmholtz coil is designed to produce standard magnetic field w
...
Model：TCXS331
The Power Frequency magnetic field coil TCXS331 is specially designed for the magnetic field immunity test of electrical.
Model：TCXS331
The Power Frequency magnetic field coil TCXS331 is specially des
...
