Unbalanced High Frequency Line

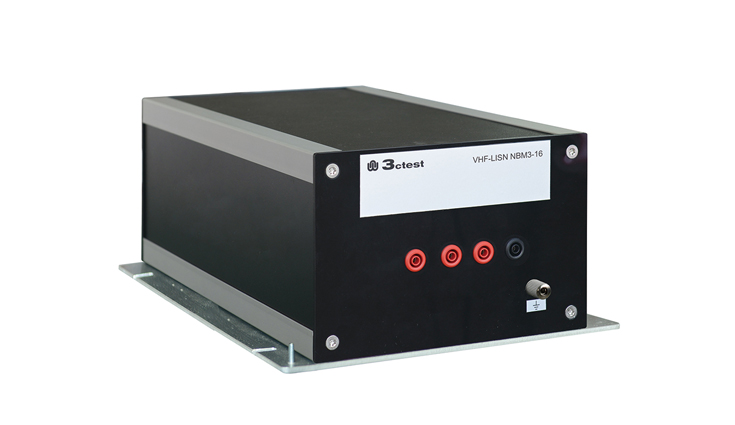

Model：VHF-LISN NBM3-16

CISPR16-1-4 Ed.3.2 defines clearly to the design and performance of high frequency line impedance stabilization networks.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

CISPR16-1-4 Ed.3.2 defines clearly to the design and performance of high frequency line impedance stabilization networks.
VHF-LISN NBM3-16 networks are unbalanced and apply to single-phase (3 lines) mains line with its maximum current 16 A.

Characteristics

  • 4mm Banana plug input/output, safe and stable
  • Power supply interface transducer is used to transduce 4 mm banana plug into standard mains plug compliance with different standards, such as Chinese standard, European standard and American standard etc.

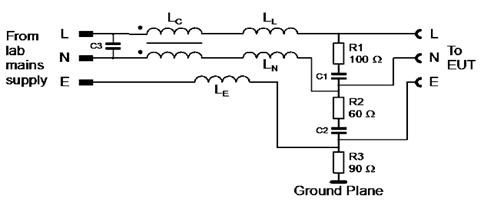

Standard Schematic Diagram:

Standard

  • CISPR16-1-4 Ed.3.2

Specifications

Technical Parameters
Item VHF-LISN NBM3-16
Standard CISPR16-1-4 Ed.3.2
Frequency Range 30 MHz-300 MHz
Max, AC Voltage（L-PE） 250 V
Max. DC Voltage（L-PE） 400 V
Max. Current 16 A
EUT Port Type 4 mm Banana(L/N/PE)
AE Port Type 4 mm Banana(L/N/PE)
Input Impedance（EUT End）
L line 30 MHz to 300 MHz 250Ω ± 20 %
N line 30 MHz to 300 MHz 150Ω ± 20 %
PE line 30 MHz to 300 MHz 90Ω ± 20 %
Phase（EUT End, L line, N line）
30 MHz to 108 MHz 0 ± 11.5°
108 MHz to 300 MHz 0 ± 25.0°
Isolation (AE-EUT)
30 MHz to 300 MHz > 40 dB
General Parameters
Dimension 250 mm (L) ×16 mm (W) ×10 mm（H）
Weight Approx. 4 kg
Ambient Temperature 15 ℃–35 ℃
Relative Humidity 45%–75%
Atmosphere Pressure Range 86 kPa–106 kPa

Downloads

Adobe PDF

Unbalanced High Frequency Line Impedance Stabilization Networks VHF-LISN NBM3-16 Datasheet

Language: English
