Unshielded asymmetric communication

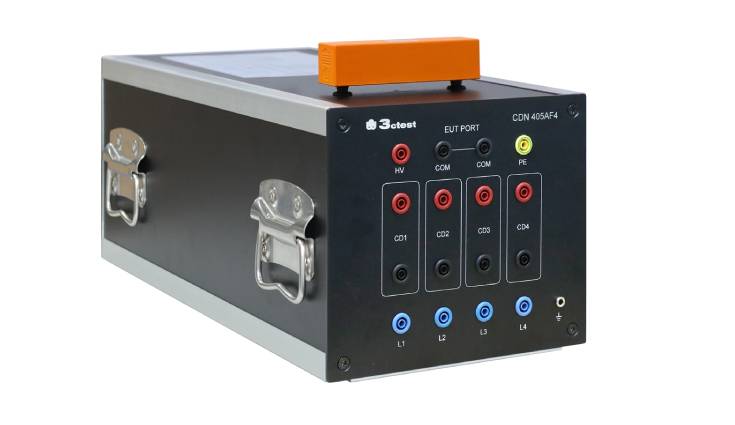

Model：CDN 405AF4(Only 1.2/50, 8/20 waveforms included)

CDN 405AF4 Coupled decoupled networks used to evaluate the lightning-surge resistance of low-speed unshielded asymmetric communication lines.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

CDN 405AF4 Coupled decoupled networks used to evaluate the lightning-surge resistance of low-speed unshielded asymmetric communication lines. It can be used to test 100KBit/s Ethernet, and the strong decoupling capability can protect the auxiliary device (AE) from surges, ensuring repeatability of the test. The maximum surge voltage is 6KV. This CDN will meet the IEC/EN 61000-4-5:2017 standard upgrade. It is designed in accordance with IEC/EN 61000-4-5 FIG. 9 Unshielded asymmetric low-speed data line standards. Decoupling performance and transmission rate are stable, small size and easy to carry and use.

Features：

  • Can be used to test 100K Bit/s rate.
  • 1/2/3/4 Wire Unshielded wire to wire/wire to ground.
  • Coupling waveform 1.2/50 μs, 8/20 μs.
  • Maximum working current 2A.
  • The interface specification is 4mm banana head.
  • Compatible with foreign generator output ports for communication testing.
  • Replace current limiting resistors, couplers and decoupling devices according to test requirements.

Standard

  • IEC 61000-4-5
  • GB/T 17626.5
  • EN 61000-4-5
  • ITU-T K.21
  • ITU-T K.20
  • ITU-T K44
  • ITU-T K.45

Specifications

Technical Parameters
Project CDN 405AF4(Only 1.2/50, 8/20 waveforms included)
Standard IEC/EN 61000 -4 -5
Coupling Waveform 1.2/50 μs, 8/20 μs
Impulse Voltage 6 kV
Coupled Mode 1/2/3/4 Wire Unshielded wire to wire/wire to ground
Coupled Apparatus GDT90, TVS76, and C05 are optional
Decoupling Device GDT90, TVS76, TVS 200, C250 optional
Output Impedance One 40Ω impedance module
Communication Interface 4 mm banana head
Data Rate 100 Kbit/s
Working Voltage It is determined by coupling module and decoupling module
Working Current Max 2 A
Decoupling Inductance 20 mH
General parameters
Size 475 mm x 235 mm x 195 mm (length x width x height)
Weight About 14 Kg
Shell Material Aluminum
Ambient Temperature (operating conditions) 15 ℃ – 35 ℃
Relative Humidity (operating conditions) 45%-75%
Packaging Box Carton
