Description

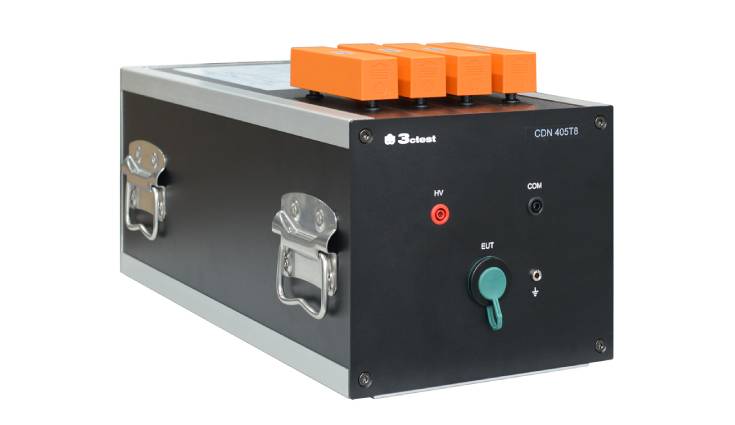

CDN 405T8 (POE 10KV) coupling/decoupling network is suitable for (surge test) 4 pairs of 8-wire unshielded symmetric high speed (POE) communication line coupling decoupling network with peak voltage up to 10KV. Designed in strict accordance with IEC 61000-4-5:2017 standards. The maximum data transfer rate is 1,000 MBit/s. Using high magnetic conductivity material as decoupling device, decoupling performance and transmission rate are stable, small size and easy to carry and use.
Features：
- Meet the requirements of IEC/EN 61000-4-5:2005 and IEC/EN 61000-4-5:2017 Figure 11.
- Used together with surge generator.
- Coupled waveform1.2/50 μs、8/20 μs;10/700μs、5/320μs.
- Transmission rate 1000 Mbit/s.
- Powerful surge resistance, standard withstand voltage up to 10 kV.
Test Connection Illustration：
