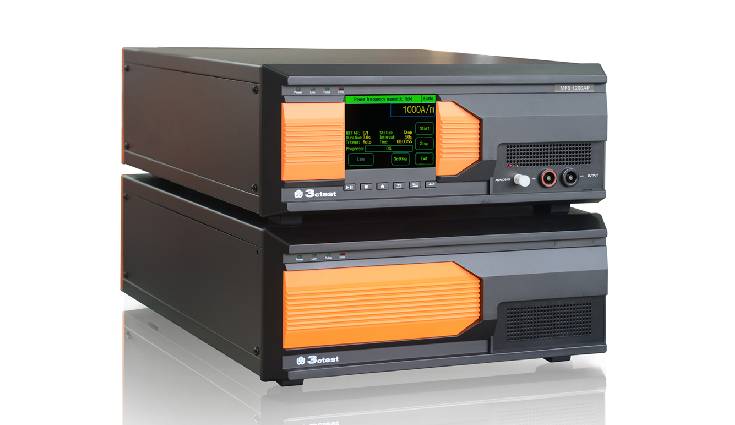

Variable-Frequency Magnetic Field Immunity Simulator MFS AP Series

Model：MFS AP Series

The variable-frequency magnetic field immunity simulator MFS AP series is designed to conduct magnetic field immunity test of electrical and electronic products.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The variable-frequency magnetic field immunity simulator MFS AP series is designed to conduct magnetic field immunity test of electrical and electronic products with high reliability as per IEC/EN 61000-4-8. It can offer accurate reference for EUT during power frequency magnetic field immunity test. It is mainly to simulate the magnetic environment in residence, commercial and industrial district, power station, and low and high substation.

Features:

  • 5.7” color touch screen front panel
  • Fully in compliance with IEC 61000-4-8 test requirements
  • Electromagnetic relay protection with voltage/current higher than rated values
  • Over-temperature protection
  • Test sequencing via control software Auto Lab
  • Ethernet RJ45 for PC remote control
  • Easy test report generation

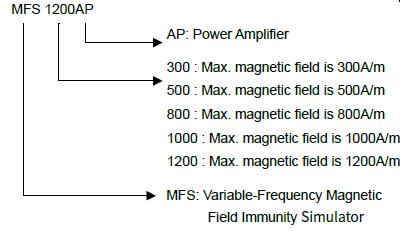

Naming Rule:

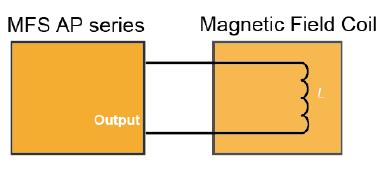

Test Connection:

Standard

  • IEC 61000-4-8
  • GB/T 17626.8
  • GB/T 17215
  • GB/T 17883
  • EN 50121-4
  • EN 61000-4-8

Specifications

Technical Parameters
Max. Output Value of Simulator ±60 V, ±30 A
Magnetic Field Strength TYX 130 (0-300 A/m, 0-240 Hz)
TYX 150 (0-500 A/m, 0-65 Hz)
TYX 180 (0-800 A/m, 0-65 Hz)
TFX 180 (0-800 A/m, 0-65 Hz)
TYX 1100 (0-1000 A/m, 0-50 Hz)
Tolerance <10%
Magnetic Field Adjustable frequency, 400 Hz is customized
External Sync. 0-359°, resolution 1°
Current Distortion <5%
Pulse Interval 1-9999 s
Test Duration 1-28800 s
Coil Shape and Dimension Magnetic Coil or Helmholtz Coil
Rectangular coil (1 m × 1 m) or round coil (φ1 m)
General Parameters
Display Screen 5.7 inch TFT touch screen
Operating Power Supply 110 V / 220 V, ±10%, 50/60 Hz (AC 220 V 50 Hz by default)
Fuse 6 A
Max. Power Consumption 100 W
Memory Space Infinite (PC)
External Control Mode D-sub 25 pin
Working Status Indication LED indication and LCD display on front panel
Grounded Mode Green-yellow grounded line
Dimension 19 inch / 6U / 4U
Weight Approx. 28 kg
Operating Temperature 15 – 35 °C
Operating Humidity 45% – 75%
Operating Air Pressure 86 kPa – 106 kPa
Standard Accessories
Power supply cable, EUT power supply cable, Network cable, Power cord, Grounding wire (5 meters), Factory test report, Warranty report, User manual
Optional Accessories
Magnetic Coil

TYX 130 (300 A/m)
TYX 150 (500 A/m)
TYX 180 (800 A/m)
TFX 180 (0-800 A/m)
TYX 1100 (1000 A/m)
Helmholtz Coil TYXH 130 (300 A/m)
TYXH 150 (500 A/m)
TYXH 180 (800 A/m)
TYXH 1100 (1000 A/m)

Downloads

Adobe PDF

Variable-Frequency Magnetic Field Immunity Simulator MFS AP Series Datasheet

Language: English
