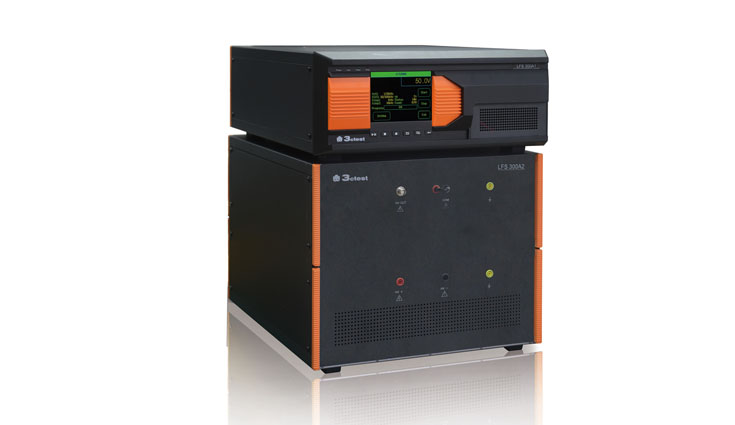

Voltage Ripple Disturbance Simulator LFS

Description

LFS 300A Voltage Ripple Disturbance Simulator is designed as per Volkswagen MQB37_AB 8.1 to meet immunity requirement of new energy vehicle-mounted electric drive and HV components in HV network to electrical system ripple. This equipment is based on our third- generation control platform with intelligent control, easy operation and one-key performing tests after setting parameters.

Features：

5.7” colorful touch screen operation;
Confirm to Volkswagen MQB37_AB 8.1;
Integrative design makes system simple and convenient, safe and durable;
Key components with high-quality materials, high reliability, fine appearance and comfortable operation;
Ethernet, RJ45 interface for PC remote control and test report printing;

Standard

Volkswagen MQB37_AB 8.1

Specifications

Technical Parameters
Frequency Range	1 kHz~300 kHz / duty cycle 50%
Frequency Step	1 kHz / 10 kHz
Open-circuit output voltage Upp	0.5 V~50 V adjustable
Ripple Wave Dwell Time	1 s ~ 5 s, adjustable
Generator Output Impedance	Zout ≤ 0,5 Ω (Zout = Upp/Ipp,)
TRise, TFall	< 1 µs @ Open-circuit voltage (25 Vpp)
TRise, TFall	< 2,5 µs @ Short-circuit current (≥50 App);
Current Capacity	≥32 A (rms), ≥70 A (peak)
Coupling	Differential mode: 120 μF（single-ended or double-ended optional） Common mode: 30 uF + 10 Ω resistance
Serial interface	LAN Ethernet RJ45
Test mode	HV+line-to-HV-line; HV+ line-to-ground; HV- line to ground; HV-&HV- line to ground;
General Parameters
Power supply	AC 110/220 V, ±10%, 45 Hz ~ 65 Hz
Ambient Temperature	15 ℃~ 35 ℃
Dimension	600 mm450 mm 370 mm （LWH 8U） 625 mm 450 mm 195 mm (LWH 4U）
Weight	Approx. 70 kg

Downloads

Voltage Ripple Disturbance Simulator LFS 300A Datasheet

Language: English
