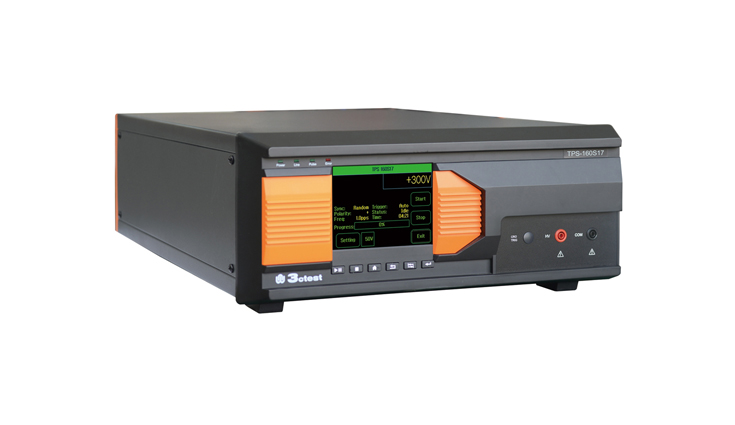

Voltage Spike Pulse Simulator TPS-160S17

Description

TPS-160S17 is designed according to RTCA DO-160 S17, capable of applying 5 Hz pulses with adjustable peak values onto ungrounded power supply lines of the EUT.
With 3ctest’s third generation intelligent control platform, great human-machine interaction, easy test parameters setup, and automatic execution of tests with test sequencing and test scheduling have been achieved. It boasts high system integration degree, intelligent control, easy operation and time-saving operation.

Features:

• 5.7” color touch screen front panel;
• Capable of generating 300 pulses with alternative polarity in one minute;
• Spike voltage ranges from 0 V ~ 1200 V，test voltage can be adjusted in real-time during tests;
• External coupling transformer;
• EUT current: Max 100 A; higher current can be customized;
