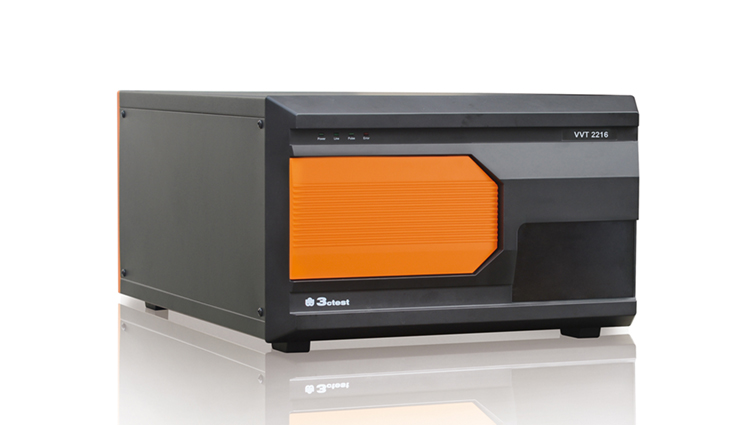

VVT/VMT/MFT series can be equipped with CCS simulator to produce voltage dip, interruption and variation to conduct automatic test. Test system can be communicated by Ethernet bus and controlled by EMSLab.
| General Data | |
|---|---|
| Power supply | AC 110V/220V，±10%，50/60Hz |
| Fuse | 6A |
| Max. power consumption | 50W |
| External control | 25 pin parallel line |
| Working indicator | LED display on front panel |
| Grounding connection | Flat grounding line |
| EUT power injection | 4mm banana line |
| Output mode | 1m coaxial cable |
| Dimension | 19’’/6U |
| Weight | Approx. 68kg（different models have different weight） |
| Temperature | 15–35℃ |
| Humidity | 45%–75% |
| Air pressure | 86kPa–106kPa |
| Power fail test as per IEC 61000-4-11 & IEC 61000-4-34 | |
| Technical parameters of single phase AC and DC voltage dip, short interruption and variation as per IEC/EN61000-4-11, GB/T17626.11 and IEC/EN61000-4-34, GB/T17626.34 | |
| EUT Max voltage | 250V AC |
| EUT max current | 16A continuous current;
500A impulse current; |
| Max. input mains | Single phase 220V±5%, 50/60Hz±5% |
| Voltage dip level | 0-100% |
| Voltage interruption level | 0% |
| Voltage variation level | 0-100% |
| Decrease time for voltage variation | 500ms-60000ms（50%-100%）or 1-5us（100 ohm load）
1000ms-60000ms（0%-100%）or 1-5us（100 ohm load） |
| Increase time for voltage variation | 500ms-60000ms（50%-100%）
1000ms-60000ms（0%-100%） |
| PFMF test | |
| Standards | IEC/EN 61000-4-8、GB/T 17626.8 |
| Magnetic field intensity | TCXS111 single-turn 1m*1m square magnetic coil：
1-100A/m continuous,100-400A/m(1-10s short time) TCXS113 three-turn 1m*1m square magnetic coil：1-300A/m continuous, 300-1200A/m (1~10s short time) |
| Waveform | 50Hz/60Hz sine wave |
| THID | <5% |
| Output current | 1A-500A |
| Waveform interval | 1-9999s |
| Test duration | 1-28800s |
| Trigger mode | Auto, manual, extern |
| Coil size | 1000*1000 mm or others |
| Coil shape | Rectangle or as the special requirements |
| Number of turns | single-turn or three-turn |
| Magnetic intensity | Can be programmable |
Model：CCS 1000
CCS 1000 is an intelligent multifunctional compact immunity (EMS) test system, which meets all the requirements of international standards and product standards for transient pulse, surge and voltage dip.
Model：CCS 1000
CCS 1000 is an intelligent multifunctional compact immunity (EM
...
Model：ccs 500
Compact immunity test system CCS500 is an intelligent multifunctional compact immunity (EMS) test system, as per all the requirements of international standards and product standards for transient pulse.
Model：ccs 500
Compact immunity test system CCS500 is an intelligent multifunct
...
Model：CCS600
CCS600 is an intelligent multifunctional compact immunity (EMS) test system, as per all the requirements of international standards and product standards for transient pulse, surge and voltage dip.
Model：CCS600
CCS600 is an intelligent multifunctional compact immunity (EMS) test system, as pe
...
Model：CCS 800
CCS 800 is an intelligent multifunctional combined immunity testing (EMS) equipment that can meet various testing requirements for transient pulses, surges, communications, voltage drops, ringing waves, pulse magnetic fields.
Model：CCS 800
CCS 800 is an intelligent multifunctional combined immunity test
...
