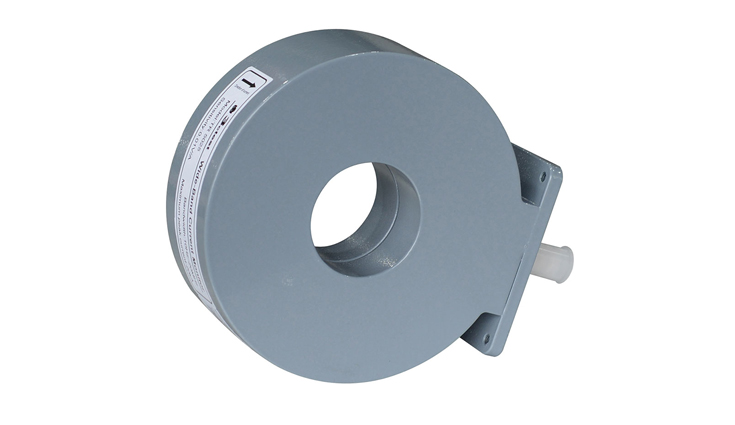

Wide-band Current Monitor CM 03203M

Model：CM 03203M

The CM 03203M is used for measuring alternating current and time domain pulse current in the frequency range from 200 Hz to 3 MHz.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The CM 03203M is used for measuring alternating current and time domain pulse current in the frequency range from 200 Hz to 3 MHz. It features no waveform distortion and physically isolation with current carrier and transmits time harmonics current or pulse current to recording instruments in the form of voltage, which meet the measurement requirement of time harmonics signal with frequency of 3 MHz or below and transient pulse with rise time less than 117 ns. Widely used in tests of EMC conductive sensitivity (immunity).

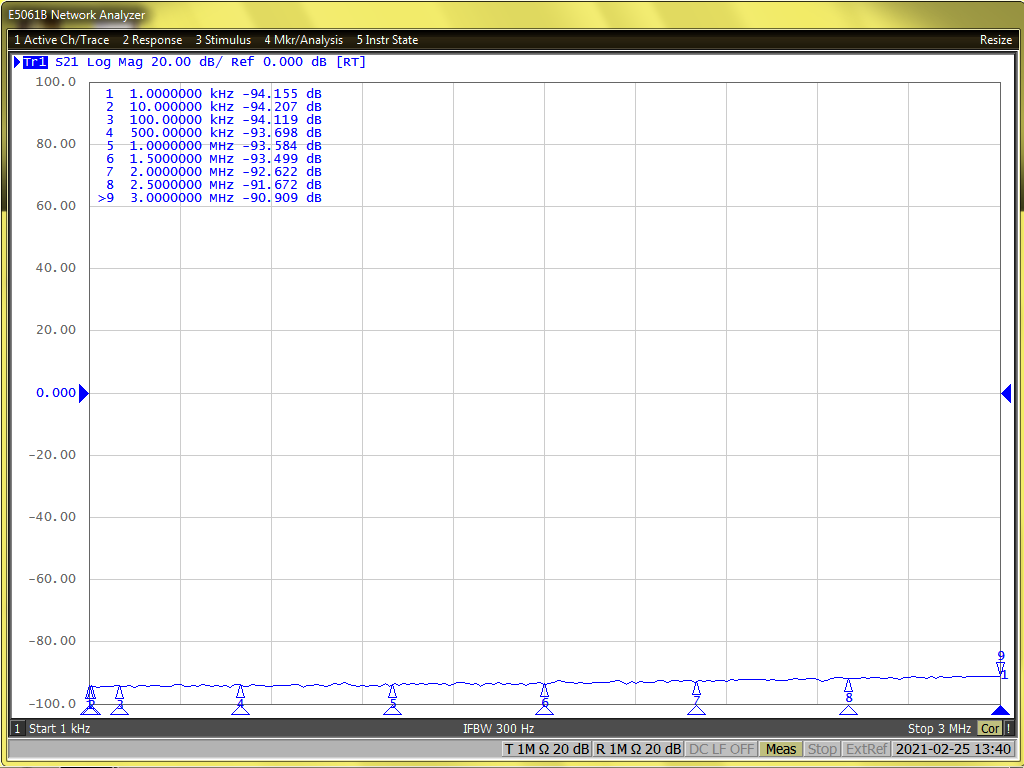

s21 curve of CM 03203M

Standard

Specifications

Technical Parameters
Sensitivity 0.002 V/A High Frequency 3 dB cut-off 3 MHz
Output Resistance 50 Ω Inner Diameter 40 mm
Max. Peak Current 100,000 A Outer Diameter 116 mm
Max. rms Current 150 A Thickness 40 mm
Rise Time 117 ns Interface Type BNC type
Current Time Product 4 A·s Operating Temperature 0 ℃ ~ 65 ℃
Low Frequency 3 dB cut-off 200 Hz Weight 1 kg
