Description
The WCT 20 is used in conducted, differential mode current test as per IEC 61000-4-19. It is capable of realizing electric isolation between differential-mode signal generator and EUT to ensure test safety.

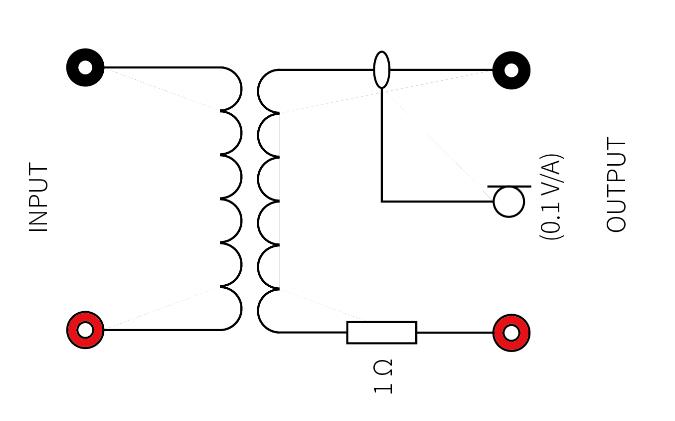

Design Schematic Circuit：

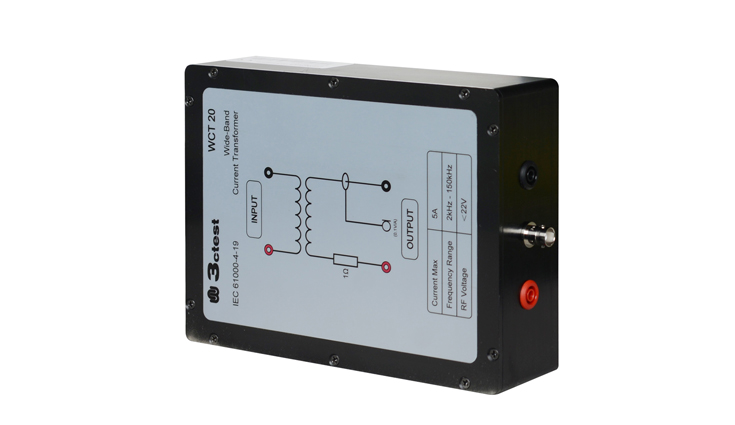

Wideband Current Transformer WCT 20
Standard
Specifications
| Technical Parameters | |
|---|---|
| Frequency | DC ~ 500 MHz |
| Maximum Current | 5 A |
| VMaximum VoltageSWR | <22 V |
| Impedance | 1 Ω±0.3 Ω |
| Connection Port | 4 mm banana plug |
| Ambient Temperature | 5 ℃~40 ℃ |
| Relative Humidity | ＜ 80% |
| Atmospheric Pressure | 86 kPa ~ 106 kPa |
| Dimension | 200 mm （L）×150 mm（W）×53 mm（H） |
| Weight | Approx. 2.5 kg |
